CATCH

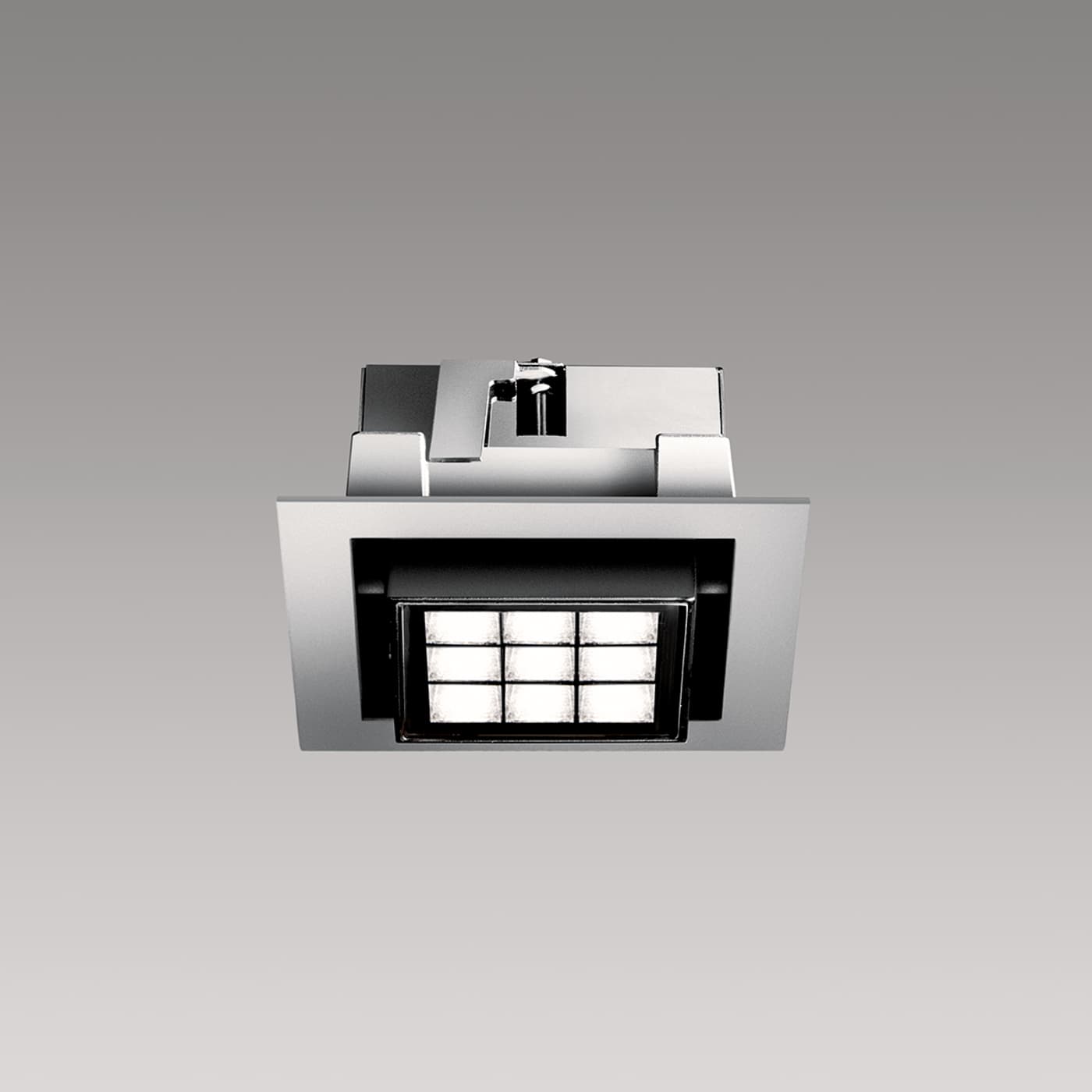

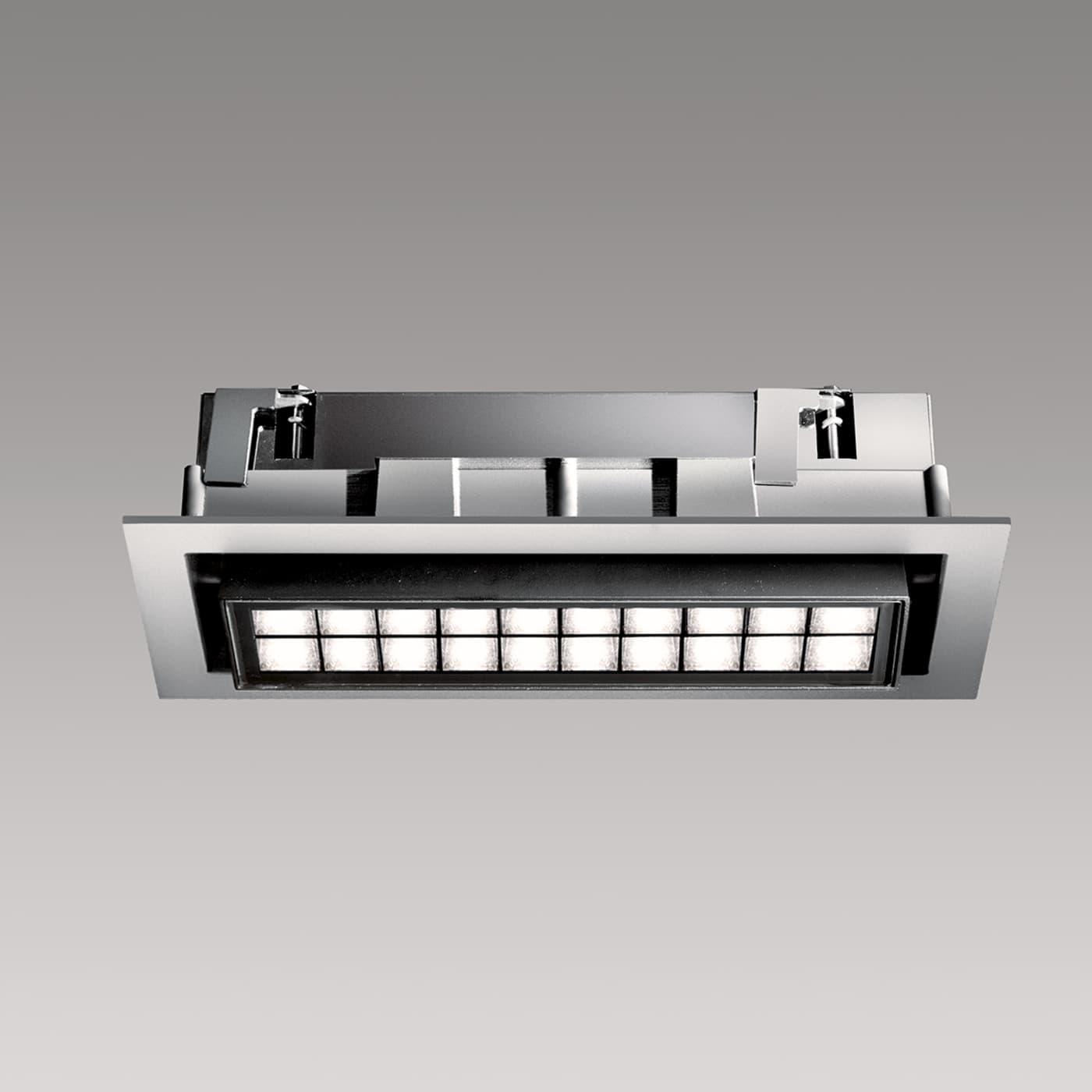

CATCH is an innovative downlight range that combines great visual comfort, minimalist dimensions and light orientation of its tilting optical system. Its comfortable optics obtained with cowels grant glare free and high performances. CATCH is available in two versions: surface mounted which contains the driver and a recessed version that can be directly installed in plasterboards or with its recessing box, for concrete ceilings. The lighting element of CATCH recessed version can be installed flush with the ceiling or protruding for a higher precision of pointing. On our Regent Lighting website you will find the complete SIMES portfolio. Sales opportunities for SIMES products extend to the Swiss market to ensure the highest quality and first-class service. To find out more about the SIMES portfolio, visit www.simes.it
Features
Specifications
Fields of application
Downloads
| Article number | Colour / Finish | Beam angle | Ceiling trim | Colour temperature | Luminous flux of luminaire | System power | |
|---|---|---|---|---|---|---|---|
S.7400H.01 DL CR115x115 LED425-927 34 WH DALI2006.7113 | white | 34° | with ceiling trim in aluminium | 2700 K | 425 lm | 7.8 W | |
S.7400H.14 DL CR115x115 LED425-927 34 GYA DALI2006.7114 | aluminium grey | 34° | with ceiling trim in aluminium | 2700 K | 425 lm | 7.8 W | |
S.7400N.01 DL CR115x115 LED460-840 34 WH DALI2003.8974 | white | 34° | with ceiling trim in aluminium | 4000 K | 460 lm | 7.8 W | |
S.7400N.14 DL CR115x115 LED460-840 34 GYA DALI2002.0145 | aluminium grey | 34° | with ceiling trim in aluminium | 4000 K | 460 lm | 7.8 W | |
S.7400W.01 DL CR115x115 LED448-930 34 WH DALI2003.8975 | white | 34° | with ceiling trim in aluminium | 3000 K | 448 lm | 7.8 W | |
S.7400W.14 DL CR115x115 LED448-930 34 GYA DALI2002.0146 | aluminium grey | 34° | with ceiling trim in aluminium | 3000 K | 448 lm | 7.8 W | |
S.7401H.01 DL CR115x115 LED394-927 65 WH DALI2006.7115 | white | 65° | with ceiling trim in aluminium | 2700 K | 394 lm | 7.8 W | |
S.7401H.14 DL CR115x115 LED394-927 65 GYA DALI2006.7116 | aluminium grey | 65° | with ceiling trim in aluminium | 2700 K | 394 lm | 7.8 W | |
S.7401N.01 DL CR115x115 LED428-840 65 WH DALI2003.8976 | white | 65° | with ceiling trim in aluminium | 4000 K | 428 lm | 7.8 W | |
S.7401N.14 DL CR115x115 LED428-840 65 GYA DALI2002.0147 | aluminium grey | 65° | with ceiling trim in aluminium | 4000 K | 428 lm | 7.8 W | |
S.7401W.01 DL CR115x115 LED415-930 65 WH DALI2003.8977 | white | 65° | with ceiling trim in aluminium | 3000 K | 415 lm | 7.8 W | |
S.7401W.14 DL CR115x115 LED415-930 65 GYA DALI2002.0148 | aluminium grey | 65° | with ceiling trim in aluminium | 3000 K | 415 lm | 7.8 W | |
S.7420H.01 DL CR148x148 LED935-927 34 WH DALI2006.7125 | white | 34° | with ceiling trim in aluminium | 2700 K | 935 lm | 14.9 W | |
S.7420H.14 DL CR148x148 LED935-927 34 GYA DALI2006.7126 | aluminium grey | 34° | with ceiling trim in aluminium | 2700 K | 935 lm | 14.9 W | |
S.7420N.01 DL CR148x148 LED1014-840 34 WH DALI2003.6902 | white | 34° | with ceiling trim in aluminium | 4000 K | 1014 lm | 14.9 W | |
S.7420N.14 DL CR148x148 LED1014-840 34 GYA DALI2000.8009 | aluminium grey | 34° | with ceiling trim in aluminium | 4000 K | 1014 lm | 14.9 W | |
S.7420W.01 DL CR148x148 LED985-930 34 WH DALI2003.6903 | white | 34° | with ceiling trim in aluminium | 3000 K | 985 lm | 14.9 W | |
S.7420W.14 DL CR148x148 LED985-930 34 GYA DALI2000.8012 | aluminium grey | 34° | with ceiling trim in aluminium | 3000 K | 985 lm | 14.9 W | |
S.7421H.01 DL CR148x148 LED722-927 63 WH DALI2006.7127 | white | 63° | with ceiling trim in aluminium | 2700 K | 722 lm | 14.9 W | |
S.7421H.14 DL CR148x148 LED722-927 63 GYA DALI2006.7128 | aluminium grey | 63° | with ceiling trim in aluminium | 2700 K | 722 lm | 14.9 W | |
S.7421N.01 DL CR148x148 LED784-840 63 WH DALI2003.6904 | white | 63° | with ceiling trim in aluminium | 4000 K | 784 lm | 14.9 W | |
S.7421N.14 DL CR148x148 LED784-840 63 GYA DALI2000.8013 | aluminium grey | 63° | with ceiling trim in aluminium | 4000 K | 784 lm | 14.9 W | |
S.7421W.01 DL CR148x148 LED761-930 63 WH DALI2003.6905 | white | 63° | with ceiling trim in aluminium | 3000 K | 761 lm | 14.9 W | |
S.7421W.14 DL CR148x148 LED761-930 63 GYA DALI2000.8014 | aluminium grey | 63° | with ceiling trim in aluminium | 3000 K | 761 lm | 14.9 W | |
S.7460H.01 DL CR331x118 LED2166-927 34 WH DALI2006.7137 | white | 34° | with ceiling trim in aluminium | 2700 K | 2166 lm | 32 W | |
S.7460H.14 DL CR331x118 LED2166-927 34 GYA DALI2006.7138 | aluminium grey | 34° | with ceiling trim in aluminium | 2700 K | 2166 lm | 32 W | |
S.7460N.01 DL CR331x118 LED2349-840 34 WH DALI2003.6909 | white | 34° | with ceiling trim in aluminium | 4000 K | 2349 lm | 32 W | |
S.7460N.14 DL CR331x118 LED2349-840 34 GYA DALI2000.8029 | aluminium grey | 34° | with ceiling trim in aluminium | 4000 K | 2349 lm | 32 W | |
S.7460W.01 DL CR331x118 LED2281-930 34 WH DALI2003.6910 | white | 34° | with ceiling trim in aluminium | 3000 K | 2281 lm | 32 W | |
S.7460W.14 DL CR331x118 LED2281-930 34 GYA DALI2000.8031 | aluminium grey | 34° | with ceiling trim in aluminium | 3000 K | 2281 lm | 32 W | |
S.7461H.01 DL CR331x118 LED1724-927 63 WH DALI2006.7139 | white | 63° | with ceiling trim in aluminium | 2700 K | 1724 lm | 32 W | |
S.7461H.14 DL CR331x118 LED1724-927 63 GYA DALI2006.7140 | aluminium grey | 63° | with ceiling trim in aluminium | 2700 K | 1724 lm | 32 W | |
S.7461N.01 DL CR331x118 LED1869-840 63 WH DALI2003.6911 | white | 63° | with ceiling trim in aluminium | 4000 K | 1869 lm | 32 W | |
S.7461N.14 DL CR331x118 LED1869-840 63 GYA DALI2000.8032 | aluminium grey | 63° | with ceiling trim in aluminium | 4000 K | 1869 lm | 32 W | |
S.7461W.01 DL CR331x118 LED1815-930 63 WH DALI2003.6912 | white | 63° | with ceiling trim in aluminium | 3000 K | 1815 lm | 32 W | |
S.7461W.14 DL CR331x118 LED1815-930 63 GYA DALI2000.8033 | aluminium grey | 63° | with ceiling trim in aluminium | 3000 K | 1815 lm | 32 W |
