SUIT

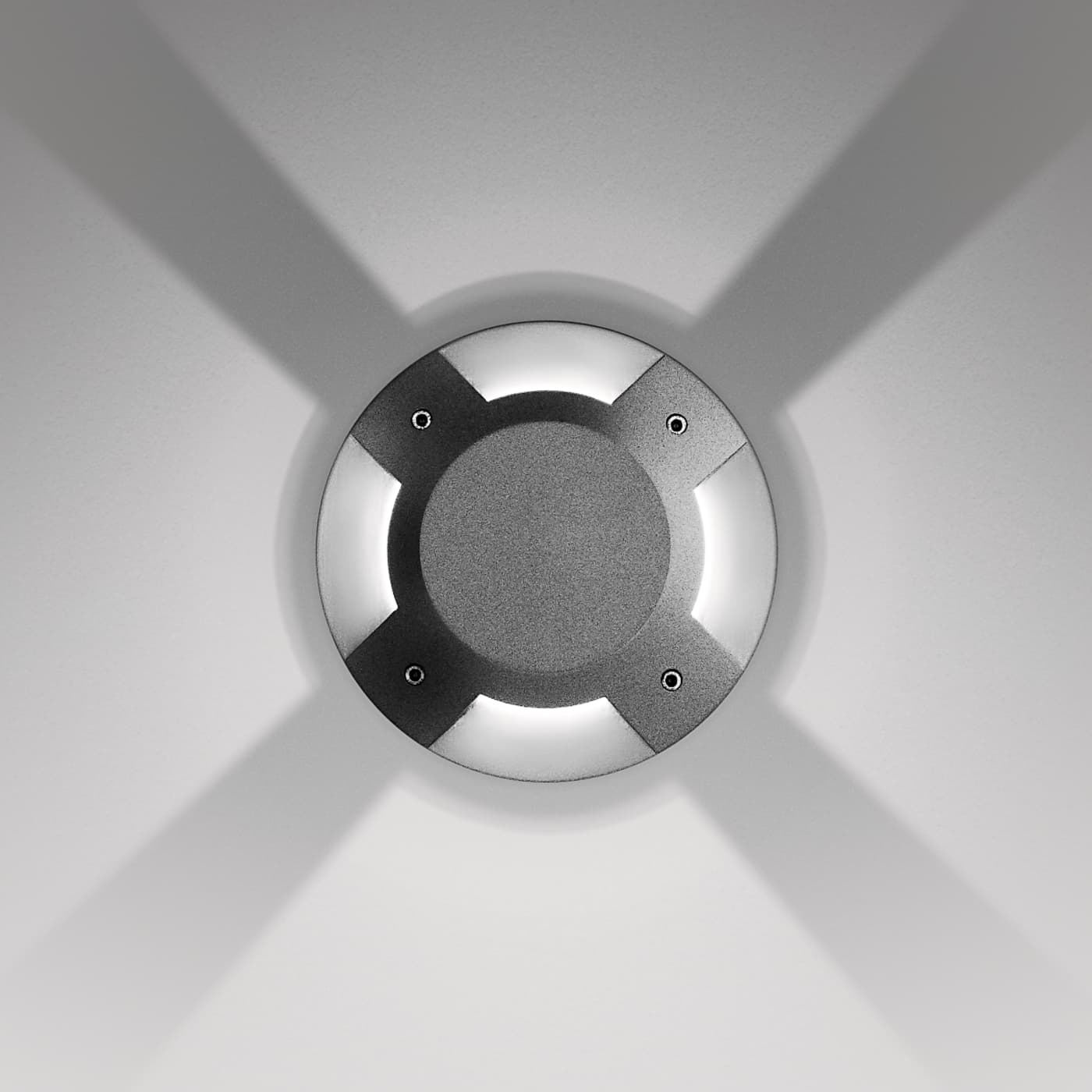

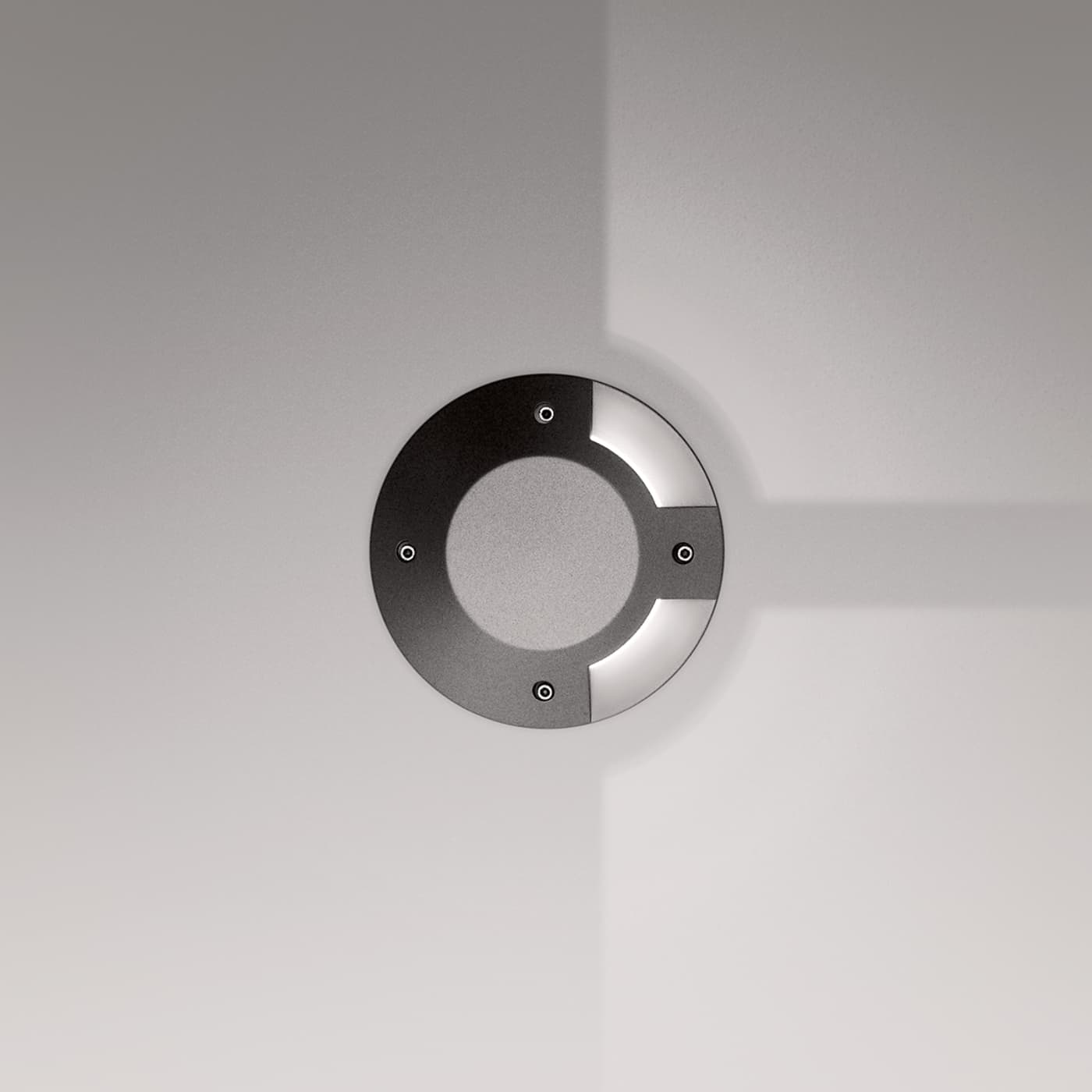

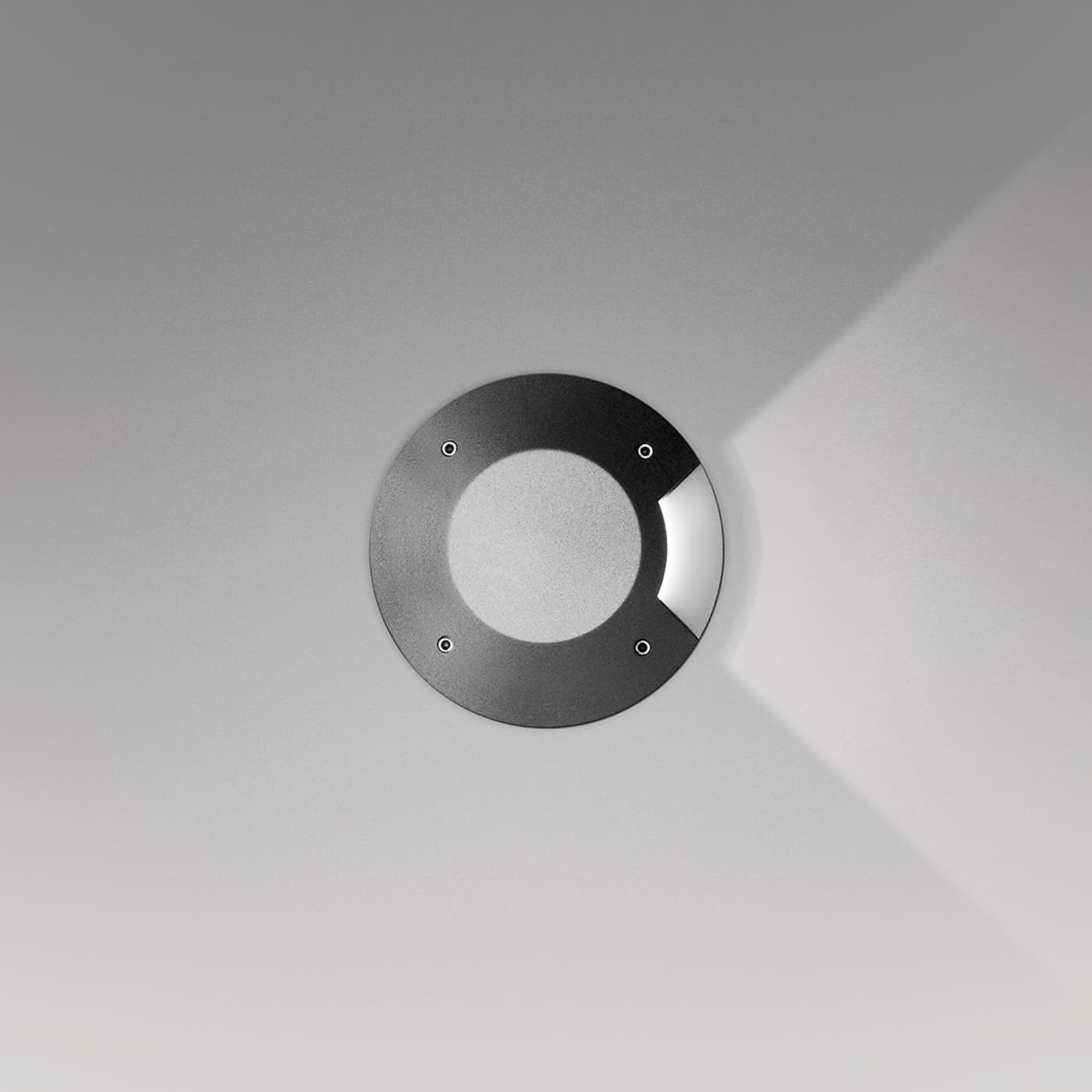

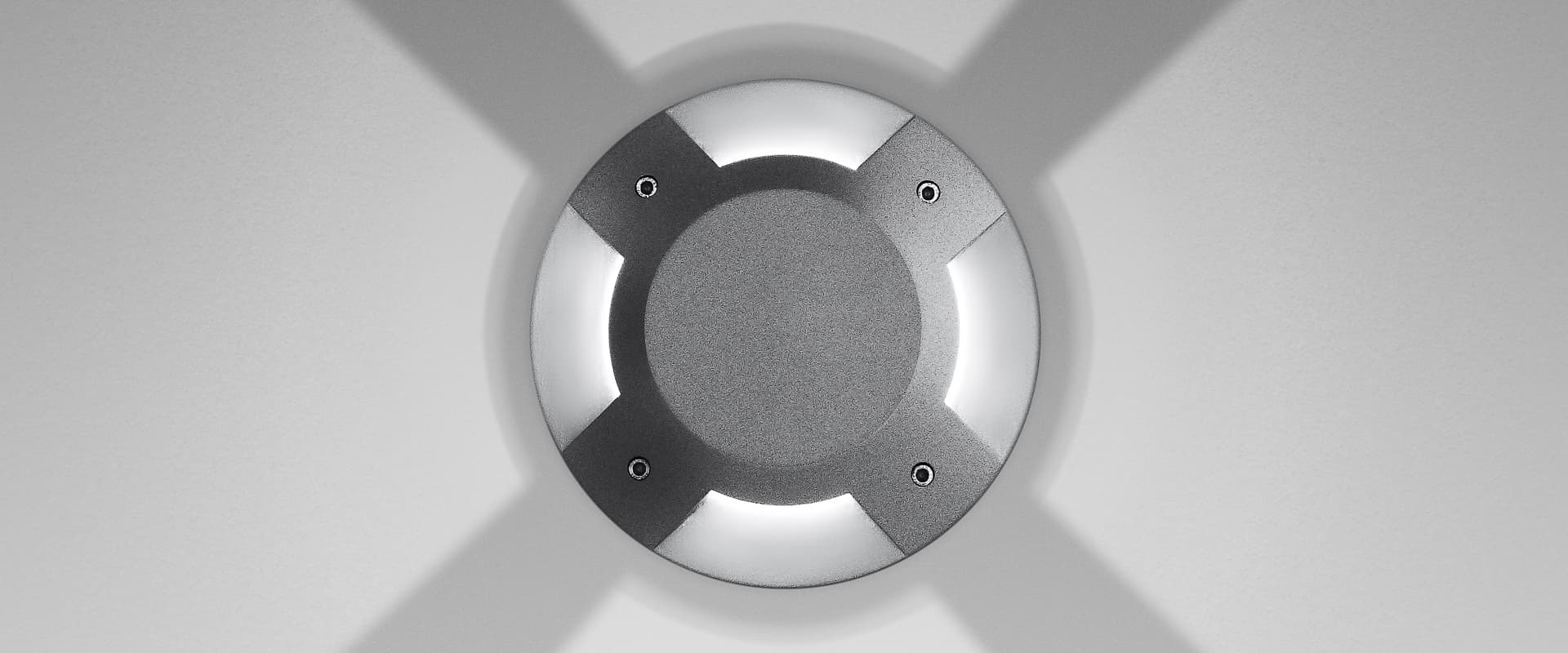

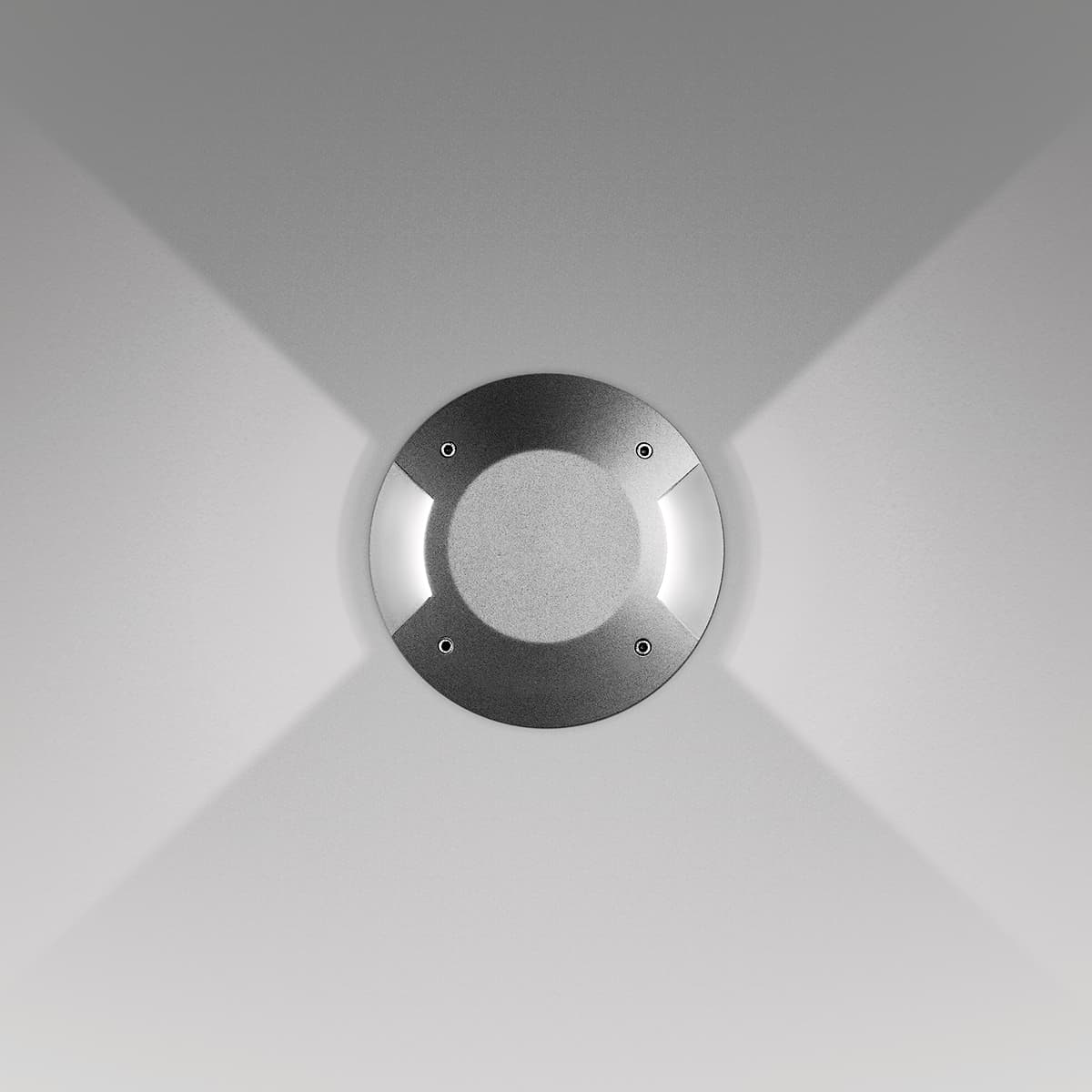

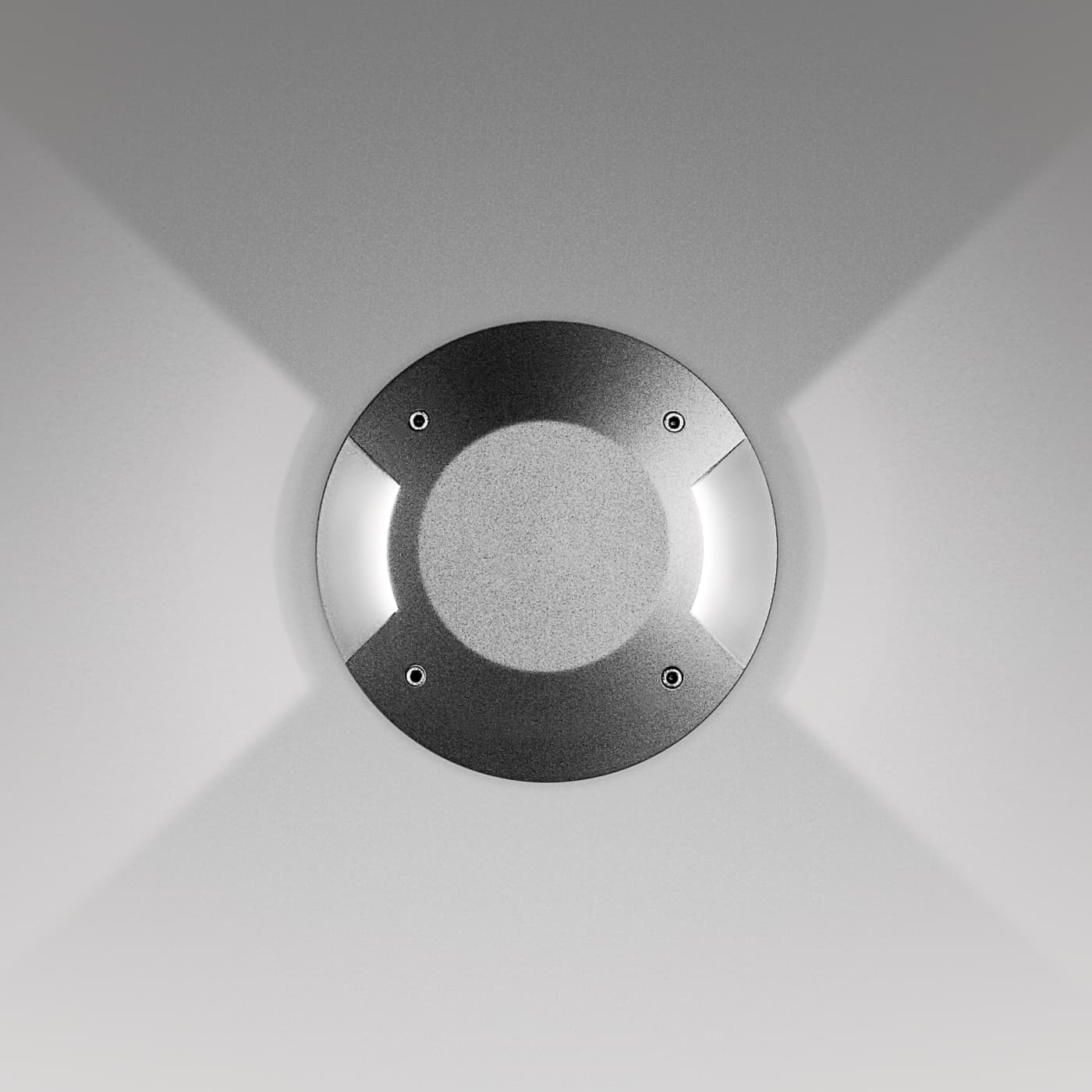

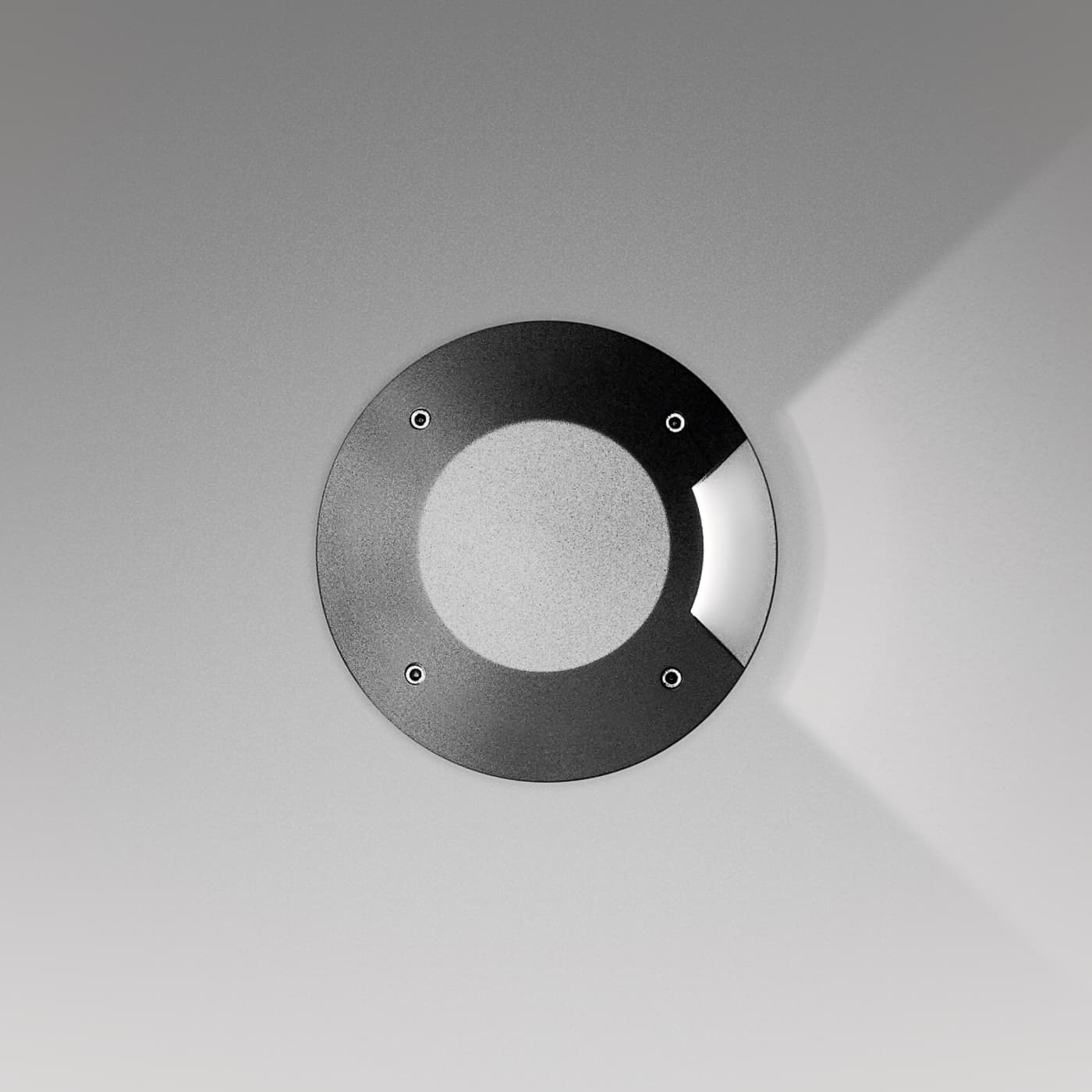

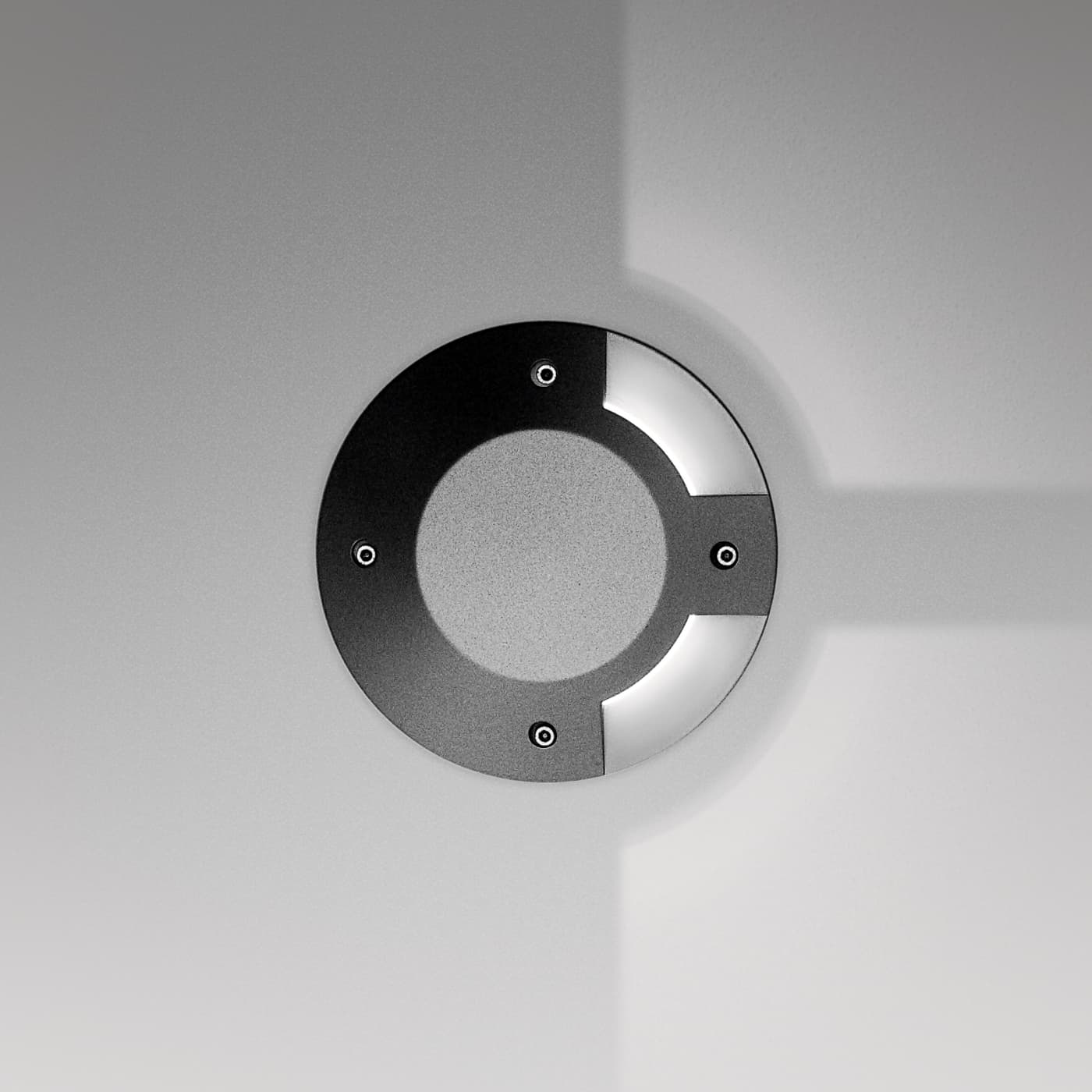

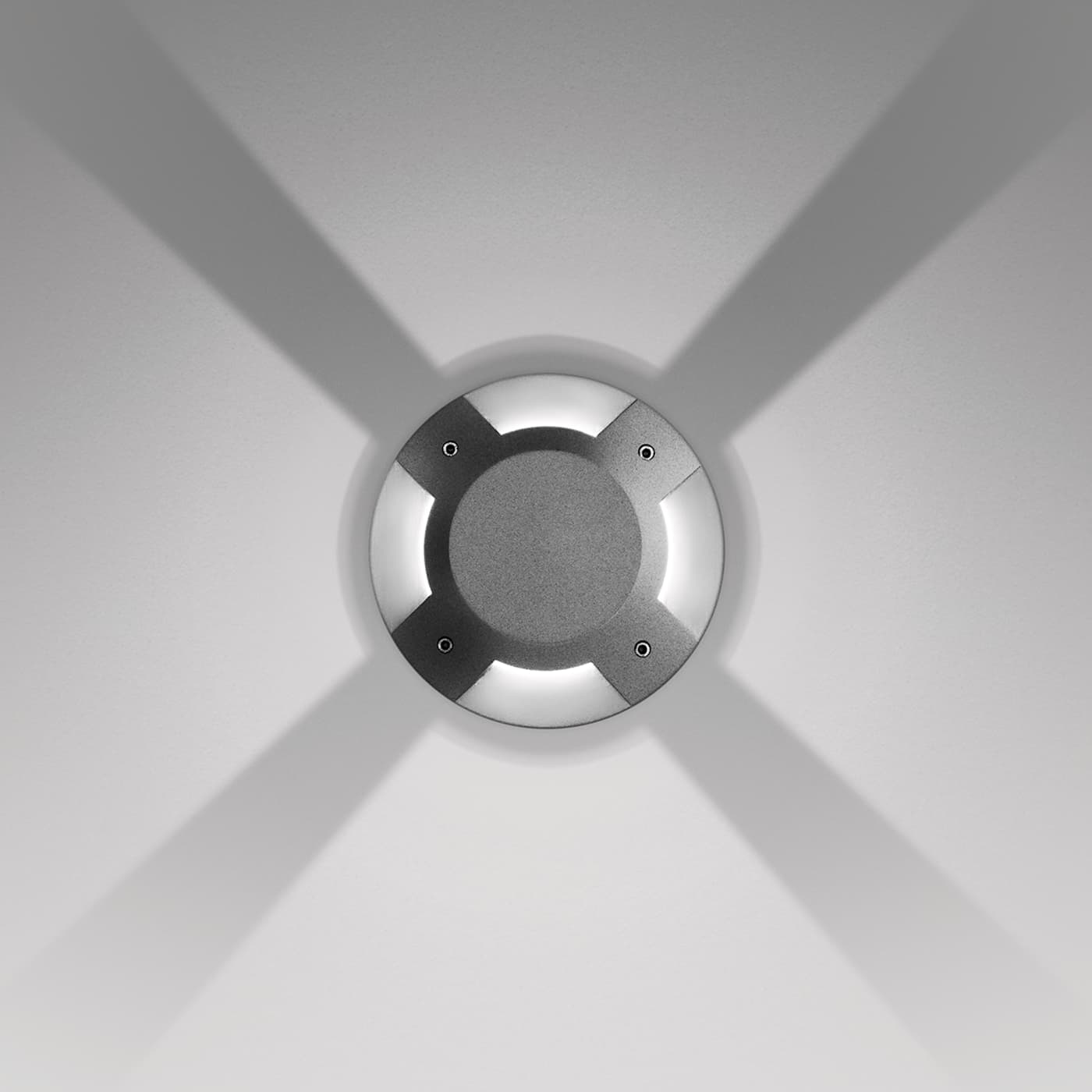

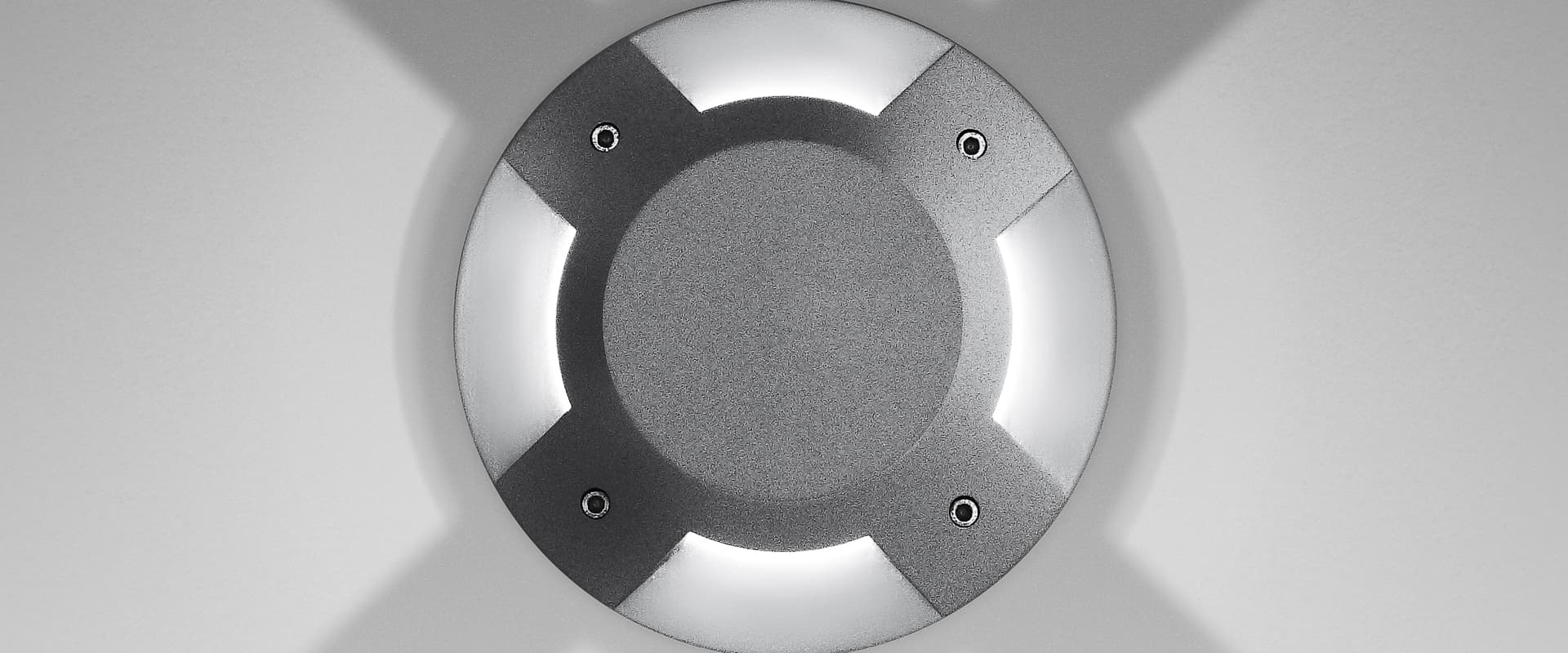

SUIT is a radial high performing surface mounted drive-over, with a high resistant, easy and safe installation, that does not require to be recessed, thanks to its anchor flange. For applications in non drive-over areas SUIT can be installed without flange. It is available with 1 window, 2 windows at 180° or 90° and 4 windows. On our Regent Lighting website you will find the complete SIMES portfolio. Sales opportunities for SIMES products extend to the Swiss market to ensure the highest quality and first-class service. To find out more about the SIMES portfolio, visit www.simes.it
Features
Specifications
Fields of application
Downloads
| Article number | Colour temperature | Luminous flux of luminaire | Diameter | System power | Colour / Finish | |
|---|---|---|---|---|---|---|
S.5681H.09 FM RND125 LED36-827 1W BK2009.3419 | 2700 K | 36 lm | 125 mm | 2 W | black | |
S.5681H.14 FM RND125 LED36-827 1W GYA2009.3420 | 2700 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5681N.09 FM RND125 LED36-840 1W BK2009.3421 | 4000 K | 36 lm | 125 mm | 2 W | black | |
S.5681N.14 FM RND125 LED36-840 1W GYA2009.3422 | 4000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5681W.09 FM RND125 LED36-830 1W BK2009.3423 | 3000 K | 36 lm | 125 mm | 2 W | black | |
S.5681W.14 FM RND125 LED36-830 1W GYA2009.3424 | 3000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5683H.09 FM RND125 LED36-827 2W-90 BK2009.3425 | 2700 K | 36 lm | 125 mm | 2 W | black | |
S.5683H.14 FM RND125 LED36-827 2W-90 GYA2009.3426 | 2700 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5683N.09 FM RND125 LED36-840 2W-90 BK2009.3427 | 4000 K | 36 lm | 125 mm | 2 W | black | |
S.5683N.14 FM RND125 LED36-840 2W-90 GYA2009.3428 | 4000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5683W.09 FM RND125 LED36-830 2W-90 BK2009.3429 | 3000 K | 36 lm | 125 mm | 2 W | black | |
S.5683W.14 FM RND125 LED36-830 2W-90 GYA2009.3430 | 3000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5685H.09 FM RND125 LED36-827 4W BK2009.3431 | 2700 K | 36 lm | 125 mm | 2 W | black | |
S.5685H.14 FM RND125 LED36-827 4W GYA2009.3432 | 2700 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5685N.09 FM RND125 LED36-840 4W BK2009.3433 | 4000 K | 36 lm | 125 mm | 2 W | black | |
S.5685N.14 FM RND125 LED36-840 4W GYA2009.3434 | 4000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5685W.09 FM RND125 LED36-830 4W BK2009.3435 | 3000 K | 36 lm | 125 mm | 2 W | black | |
S.5685W.14 FM RND125 LED36-830 4W GYA2009.3436 | 3000 K | 36 lm | 125 mm | 2 W | aluminium grey | |
S.5691H.09 FM RND235 LED59-827 1W BK ONF2009.3836 | 2700 K | 59 lm | 235 mm | 3.5 W | black | |
S.5691H.14 FM RND235 LED59-827 1W GYA ONF2006.6895 | 2700 K | 59 lm | 235 mm | 3.5 W | aluminium grey | |
S.5691N.09 FM RND235 LED68-840 1W BK ONF2009.3837 | 4000 K | 68 lm | 235 mm | 3.5 W | black | |
S.5691N.14 FM RND235 LED68-840 1W GYA ONF1018.2252 | 4000 K | 68 lm | 235 mm | 3.5 W | aluminium grey | |
S.5691W.09 FM RND235 LED76-830 1W BK ONF2009.3838 | 3000 K | 76 lm | 235 mm | 3.5 W | black | |
S.5691W.14 FM RND235 LED76-830 1W GYA ONF2000.8205 | 3000 K | 76 lm | 235 mm | 3.5 W | aluminium grey | |
S.5692H.09 FM RND235 LED119-827 2W-180 BK ONF2009.3839 | 2700 K | 119 lm | 235 mm | 5.8 W | black | |
S.5692H.14 FM RND235 LED119-827 2W-180 GYA ONF2006.6896 | 2700 K | 119 lm | 235 mm | 5.8 W | aluminium grey | |
S.5692N.09 FM RND235 LED136-840 2W-180 BK ONF2009.3840 | 4000 K | 136 lm | 235 mm | 5.8 W | black | |
S.5692N.14 FM RND235 LED136-840 2W-180 GYA ONF1018.2253 | 4000 K | 136 lm | 235 mm | 5.8 W | aluminium grey | |
S.5692W.09 FM RND235 LED126-830 2W-180 BK ONF2009.3841 | 3000 K | 126 lm | 235 mm | 5.8 W | black | |
S.5692W.14 FM RND235 LED126-830 2W-180 GYA ONF2001.9981 | 3000 K | 126 lm | 235 mm | 5.8 W | aluminium grey | |
S.5693H.09 FM RND235 LED118-827 2W-90 BK ONF2009.3842 | 2700 K | 118 lm | 235 mm | 5.8 W | black | |
S.5693H.14 FM RND235 LED118-827 2W-90 GYA ONF2006.6897 | 2700 K | 118 lm | 235 mm | 5.8 W | aluminium grey | |
S.5693N.09 FM RND235 LED137-840 2W-90 BK ONF2009.3843 | 4000 K | 137 lm | 235 mm | 5.8 W | black | |
S.5693N.14 FM RND235 LED137-840 2W-90 GYA ONF1018.2255 | 4000 K | 137 lm | 235 mm | 5.8 W | aluminium grey | |
S.5693W.09 FM RND235 LED125-830 2W-90 BK ONF2009.3844 | 3000 K | 125 lm | 235 mm | 5.8 W | black | |
S.5693W.14 FM RND235 LED125-830 2W-90 GYA ONF2001.9982 | 3000 K | 125 lm | 235 mm | 5.8 W | aluminium grey | |
S.5694H.09 FM RND235 LED180-827 4W BK ONF2009.3845 | 2700 K | 180 lm | 235 mm | 8.5 W | black | |
S.5694H.14 FM RND235 LED180-827 4W GYA ONF2006.6191 | 2700 K | 180 lm | 235 mm | 8.5 W | aluminium grey | |
S.5694N.09 FM RND235 LED205-840 4W BK ONF2009.3846 | 4000 K | 205 lm | 235 mm | 8.5 W | black | |
S.5694N.14 FM RND235 LED205-840 4W GYA ONF1018.2256 | 4000 K | 205 lm | 235 mm | 8.5 W | aluminium grey | |
S.5694W.09 FM RND235 LED190-830 4W BK ONF2009.3847 | 3000 K | 190 lm | 235 mm | 8.5 W | black | |
S.5694W.14 FM RND235 LED190-830 4W GYA ONF2001.9983 | 3000 K | 190 lm | 235 mm | 8.5 W | aluminium grey | |
S.5695H.09 FM RND185 LED36-827 1W BK ONF2009.3624 | 2700 K | 36 lm | 185 mm | 2.2 W | black | |
S.5695H.14 FM RND185 LED36-827 1W GYA ONF2006.6898 | 2700 K | 36 lm | 185 mm | 2.2 W | aluminium grey | |
S.5695N.09 FM RND185 LED48-840 1W BK ONF2009.3625 | 4000 K | 48 lm | 185 mm | 2.2 W | black | |
S.5695N.14 FM RND185 LED48-840 1W GYA ONF1018.2258 | 4000 K | 48 lm | 185 mm | 2.2 W | aluminium grey | |
S.5695W.09 FM RND185 LED38-830 1W BK ONF2009.3626 | 3000 K | 38 lm | 185 mm | 2.2 W | black | |
S.5695W.14 FM RND185 LED38-830 1W GYA ONF2000.4458 | 3000 K | 38 lm | 185 mm | 2.2 W | aluminium grey | |
S.5696H.09 FM RND185 LED72-827 2W-180 BK ONF2009.3627 | 2700 K | 72 lm | 185 mm | 4.3 W | black | |
S.5696H.14 FM RND185 LED72-827 2W-180 GYA ONF2006.6899 | 2700 K | 72 lm | 185 mm | 4.3 W | aluminium grey | |
S.5696N.09 FM RND185 LED95-840 2W-180 BK ONF2009.3628 | 4000 K | 95 lm | 185 mm | 4.3 W | black | |
S.5696N.14 FM RND185 LED95-840 2W-180 GYA ONF1018.2262 | 4000 K | 95 lm | 185 mm | 4.3 W | aluminium grey | |
S.5696W.09 FM RND185 LED76-830 2W-180 BK ONF2009.3629 | 3000 K | 76 lm | 185 mm | 4.3 W | black | |
S.5696W.14 FM RND185 LED76-830 2W-180 GYA ONF1022.5179 | 3000 K | 76 lm | 185 mm | 4.3 W | aluminium grey | |
S.5697H.09 FM RND185 LED72-827 2W-90 BK ONF2009.3630 | 2700 K | 72 lm | 185 mm | 4.3 W | black | |
S.5697H.14 FM RND185 LED72-827 2W-90 GYA ONF2006.6900 | 2700 K | 72 lm | 185 mm | 4.3 W | aluminium grey | |
S.5697N.09 FM RND185 LED95-840 2W-90 BK ONF2009.3631 | 4000 K | 95 lm | 185 mm | 4.3 W | black | |
S.5697N.14 FM RND185 LED95-840 2W-90 GYA ONF1018.2264 | 4000 K | 95 lm | 185 mm | 4.3 W | aluminium grey | |
S.5697W.09 FM RND185 LED76-830 2W-90 BK ONF2009.3632 | 3000 K | 76 lm | 185 mm | 4.3 W | black | |
S.5697W.14 FM RND185 LED76-830 2W-90 GYA ONF2000.7162 | 3000 K | 76 lm | 185 mm | 4.3 W | aluminium grey | |
S.5698H.09 FM RND185 LED142-827 4W BK ONF2009.3633 | 2700 K | 142 lm | 185 mm | 5.5 W | black | |
S.5698H.14 FM RND185 LED142-827 4W GYA ONF2006.6901 | 2700 K | 142 lm | 185 mm | 5.5 W | aluminium grey | |
S.5698N.09 FM RND185 LED190-840 4W BK ONF2009.3634 | 4000 K | 190 lm | 185 mm | 5.5 W | black | |
S.5698N.14 FM RND185 LED190-840 4W GYA ONF1018.2266 | 4000 K | 190 lm | 185 mm | 5.5 W | aluminium grey | |
S.5698W.09 FM RND185 LED150-830 4W BK ONF2009.3635 | 3000 K | 150 lm | 185 mm | 5.5 W | black | |
S.5698W.14 FM RND185 LED150-830 4W GYA ONF1023.2377 | 3000 K | 150 lm | 185 mm | 5.5 W | aluminium grey |
