48 LED – Street light | Regent Productfinder

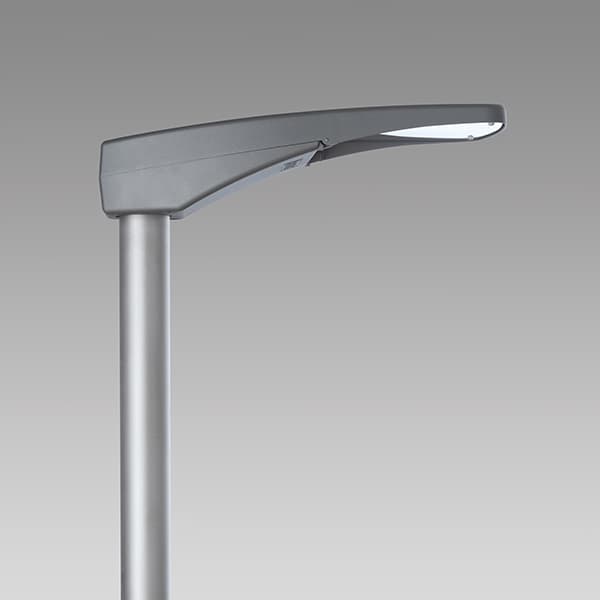

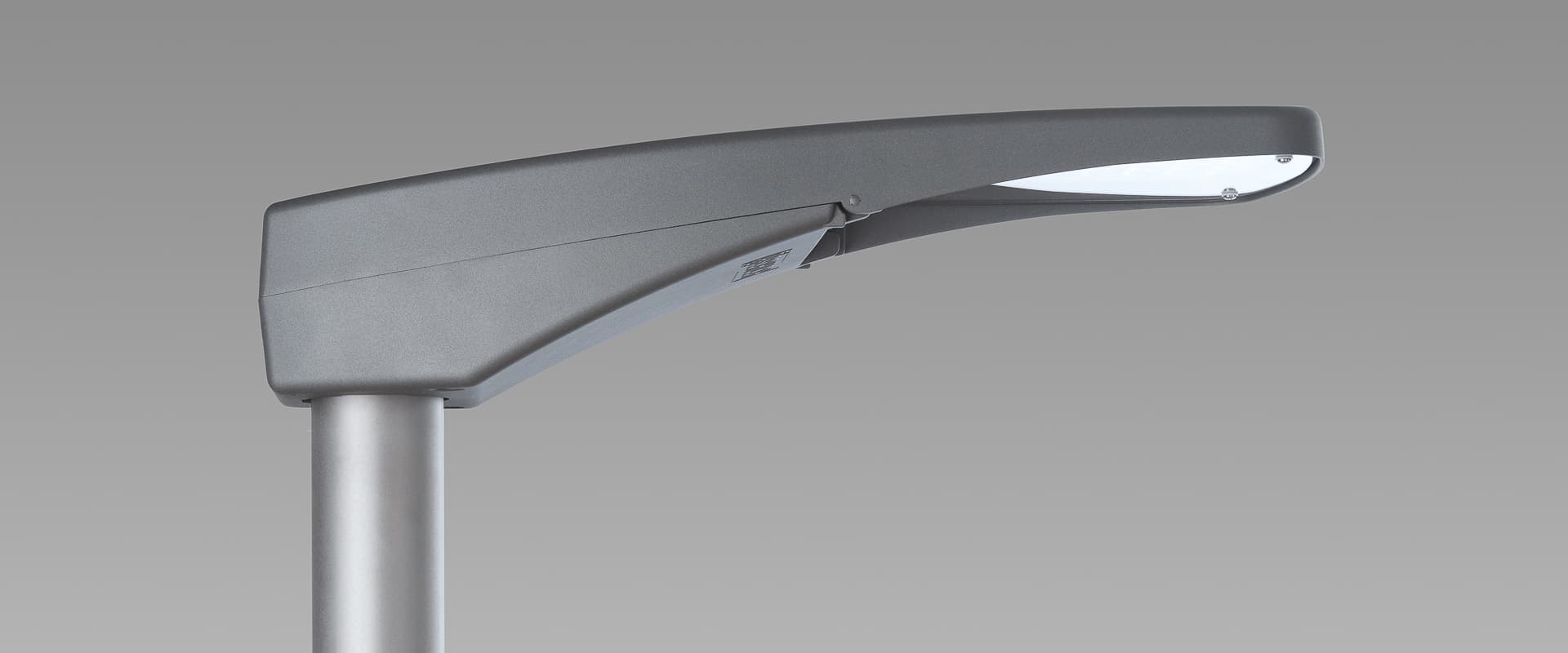

48 LED

Anyone using this light fitting for the first time will rave about the unique easy-assembly construction. No narrow terminal compartment, no painful overhead working and no additional mounting adapters. The separation of upper and lower part of the housing, the universal pole mounting system and the toolless adjustable inclination of the light fitting allow an extremely quick and easy assembly. The easy replacement of the upper part, which houses all of the electrical components and the LED modules means that any necessary traffic interference or road closure can be reduced to a minimum. SCHUCH products are only partially visible on the Regent Lighting website. In Switzerland, however, you can order their complete range through us without any restrictions. To find out more about the SCHUCH portfolio, visit www.schuch.de

Features

Electronic control with surge voltage resistance 10kV
Optimized thermal management due to direct adaption of the LED-modules to the housing
Life time: L90 > 100'000h
Integrated pressure compensation system prevents condensation in the interior
Homogeneous illumination due to the Multi-Layer-Technology
Universal pole mounting system, foldabel without tools, for post top or side entry mounting, no additional pole flanges or adapter pieces required
Top part with LED module, optics; glass cover and control gear, hinged and detachable
Lower part with pole mounting system, adjustment of inclination, cable retainer, cable entry with pressure compensation system
Adjustable inclination of the light fitting 0°, 5° and 10° in case of post top mounting, 0°, 5°, 10° and 15° in case of side-entry mounting

Fields of application

Outdoor: Residential streets, by-roads, Walkways and cycle tracks, Parks, Green areas, car parks, Gateways

Downloads

Product InformationPDF

Filters

3 articles

Article number	System power	Luminous flux of luminaire	Colour temperature
SCH 48 1602AB3 LED4050-7401022.5625	25 W	4050 lm	4000 K
SCH 48 2403A LED7330-7402005.9351	53 W	7330 lm	4000 K
SCH 48 3201A LED5250-7402006.7772	34 W	5250 lm	4000 K
