Echo 172 – Recessed downlight | Regent Productfinder

Indoor

Downlights

Recessed downlight

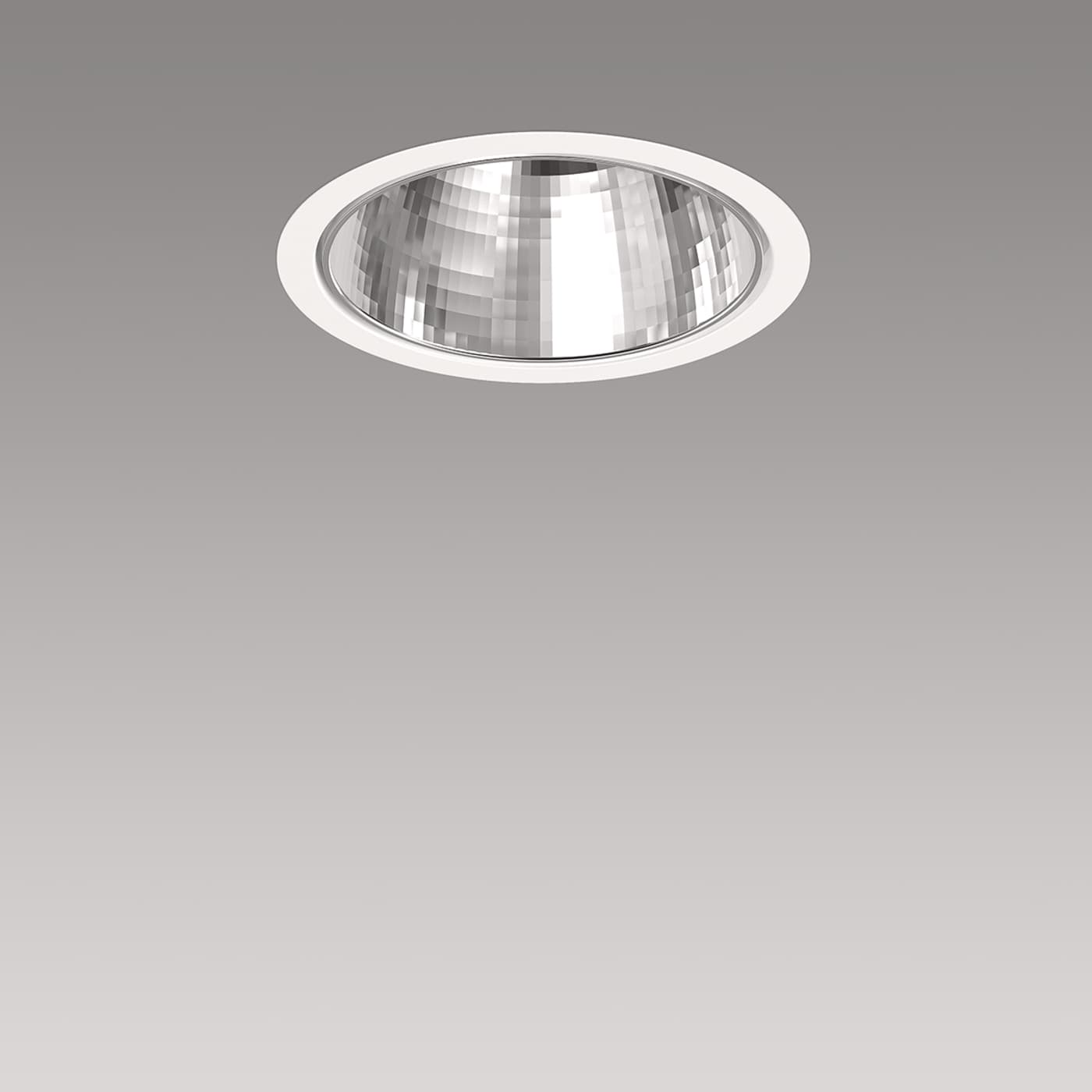

Echo 172

It is a well-known fact that all good things come from above. This is particularly true for ECHO. Regent’s new downlight is a delight even before being switched on. The installation of the lightweight is a matter of seconds and feasible completely tool-free. The luminance of ECHO is positively influenced by both mixing chamber and diffusion disc. The result: a pleasantly soft lighting experience which even sensitive eyes will find enjoyable, yet without compromising efficiency.

Features

Glare-free light thanks to highly precise light conduction
High luminous efficiency
Passive cooling
Quick and tool-free mounting
Lightweight system suitable for all ceiling types
Streamlined design makes for perfect integration into ceiling architecture

Specifications

Downlight with pleasantly homogeneous luminance levels
Ceiling cut out 172 mm
Aluminium-coated or white reflector
Tool-free assembly of accessories
DALI
Operating unit included in delivery

Fields of application

Retail & Hospitality: retail spaces, presentation of merchandise, restaurants, hotels, art & culture establishments

Downloads

Product InformationPDF

Filters

17 articles

Article number	System power	Colour temperature	Beam angle	emergency unit
ECHO172 DL LED1700-930 RWH 80 WH DALI4000.7799	19 W	3000 K	80°	-
ECHO172 DL LED1700-930 RWH 80 WH DALI E1h4000.7797	19 W	3000 K	80°	with emergency unit
ECHO172 DL LED1800-940 RWH 80 WH DALI1023.4155	19 W	4000 K	80°	-
ECHO172 DL LED1800-940 RWH 80 WH DALI E1h1023.4167	19 W	4000 K	80°	with emergency unit
ECHO172 DL LED1900-930 RSR 70 WH DALI1023.4139	19 W	3000 K	70°	-
ECHO172 DL LED1900-930 RSR 70 WH DALI E1h4000.7813	19 W	3000 K	70°	with emergency unit
ECHO172 DL LED1900-930 RSR 90 WH DALI1023.4135	19 W	3000 K	90°	-
ECHO172 DL LED2000-940 RSR 70 WH DALI1023.4163	19 W	4000 K	70°	-
ECHO172 DL LED2000-940 RSR 90 WH DALI1023.4159	19 W	4000 K	90°	-
ECHO172 DL LED2200-930 RWH 80 WH DALI E1h1023.4144	25 W	3000 K	80°	with emergency unit
ECHO172 DL LED2350-940 RWH 80 WH DALI1023.4156	25 W	4000 K	80°	-
ECHO172 DL LED2500-930 RSR 70 WH DALI E1h1023.4152	25 W	3000 K	70°	with emergency unit
ECHO172 DL LED2500-930 RSR 90 WH DALI4000.7783	25 W	3000 K	90°	-
ECHO172 DL LED2500-930 RSR 90 WH DALI E1h4000.7791	25 W	3000 K	90°	with emergency unit
ECHO172 DL LED2600-940 RSR 70 WH DALI1023.4164	25 W	4000 K	70°	-
ECHO172 DL LED2600-940 RSR 70 WH DALI E1h1023.4176	25 W	4000 K	70°	with emergency unit
ECHO172 DL LED2600-940 RSR 90 WH DALI E1h1023.4172	25 W	4000 K	90°	with emergency unit
