Features

• Height of frame only 53 mm, white or silver
• Aluminium housing
• Extremely even spread of light across the opal diffuser or microprismatic optics, suitable for application in offices
• Recessed ceiling luminaire with or without trim or especially recessed in concrete
• Ceiling mounted luminaire optional halo effect through indirect component (8 %)

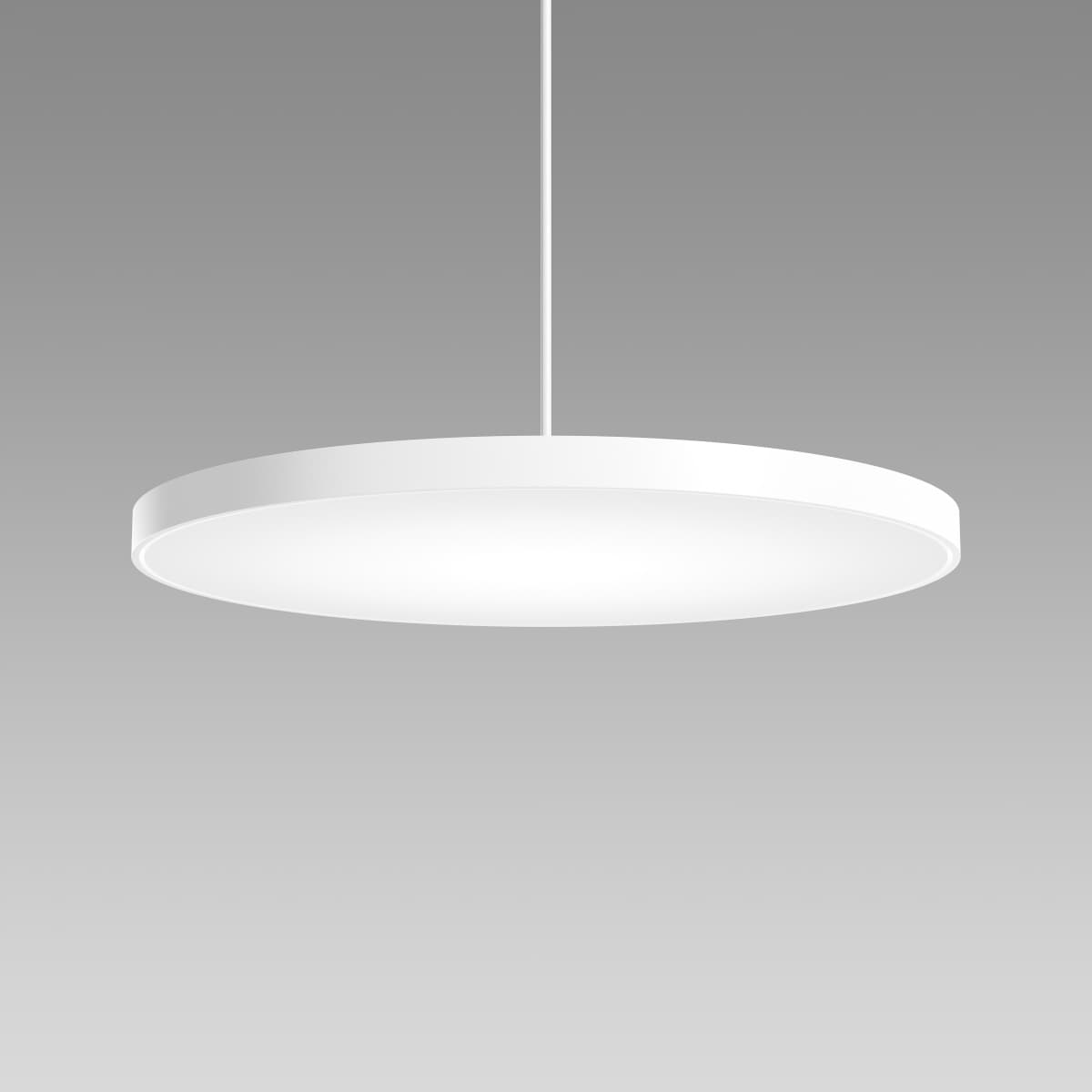

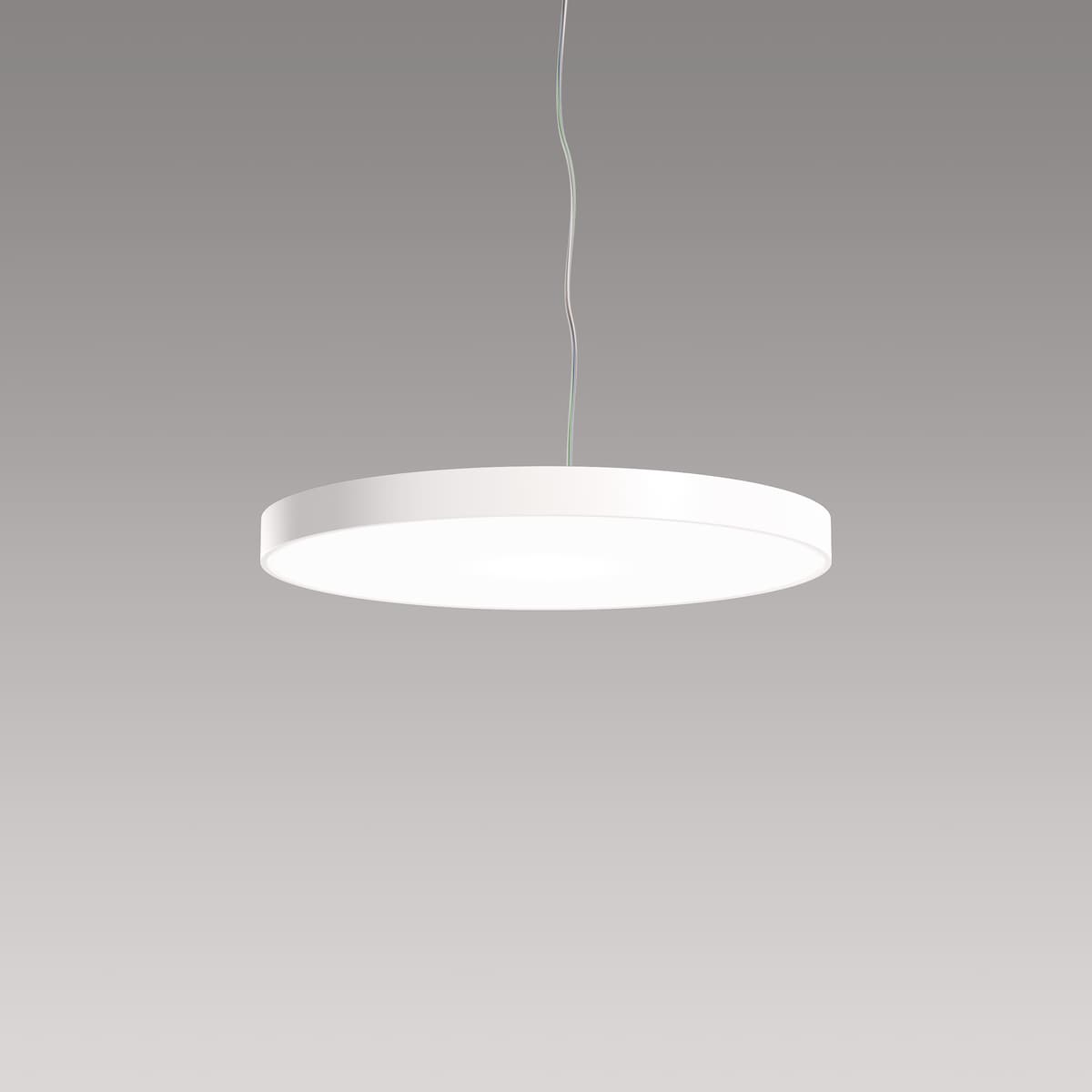

• Pendant luminaire direct-indirect light emission (61 % / 39 %)
• LED board and optics replaceable

Specifications

• Up to 4 diameters depending on the mounting type: ca. 400 mm, 500 mm, 650 mm, 950 mm
• Standard-compliant C-LED optics according to EN 12464-1 with Glare control: up to UGR < 16 and maximum luminance up to Lmax ≤ 3000 cd/m2
• Electronic control integrated
• Light control: DALI or Casambi
• Suitable for emergency lighting (DC-compatible)
• Available with emergency unit
• Pendant tube 1 m long as standard; can be shortened on site
• Other types of pendant possible thanks to accessories (3 m can be shortened on site, surface mounted and pendant luminaire)
• IP44 kit optional
• Also available recessed ceiling, ceiling, pendant and freestanding luminaire

Fields of application

• Office & Education: classrooms, meeting rooms, offices, cafeterias, foyers and lobbies, corridors, staircases
• Retail & Hospitality: hotels, reception areas, circulation zones

Downloads

• Product InformationPDF
• FolderPDF
