Features

• "S" as in slim: aesthetic design, extremely compact dimensions, 65 x 71 mm

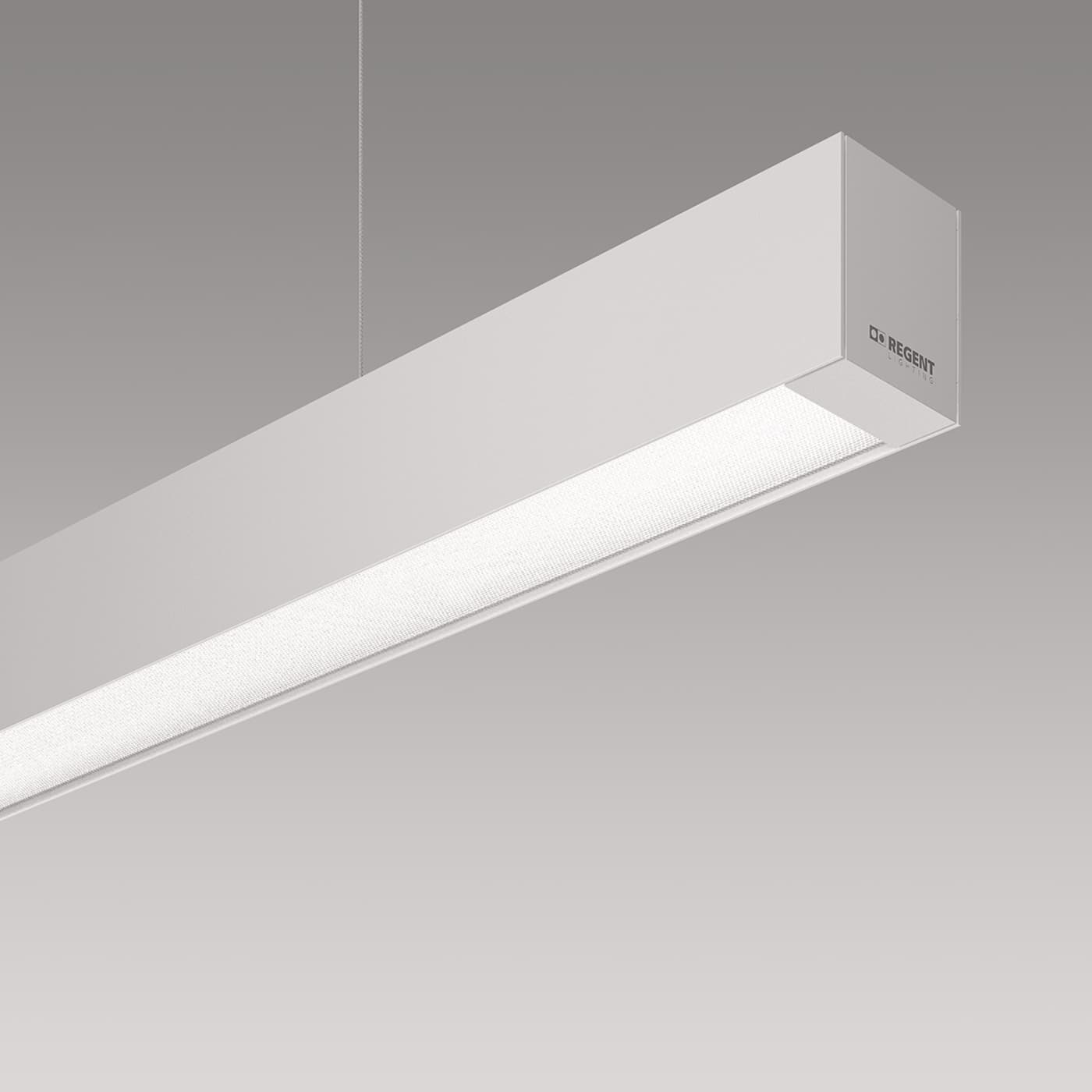

• Channel S Up: continuous line of light of up to 24 m in length thanks to the rollable RUN diffuser, can be shortened on site

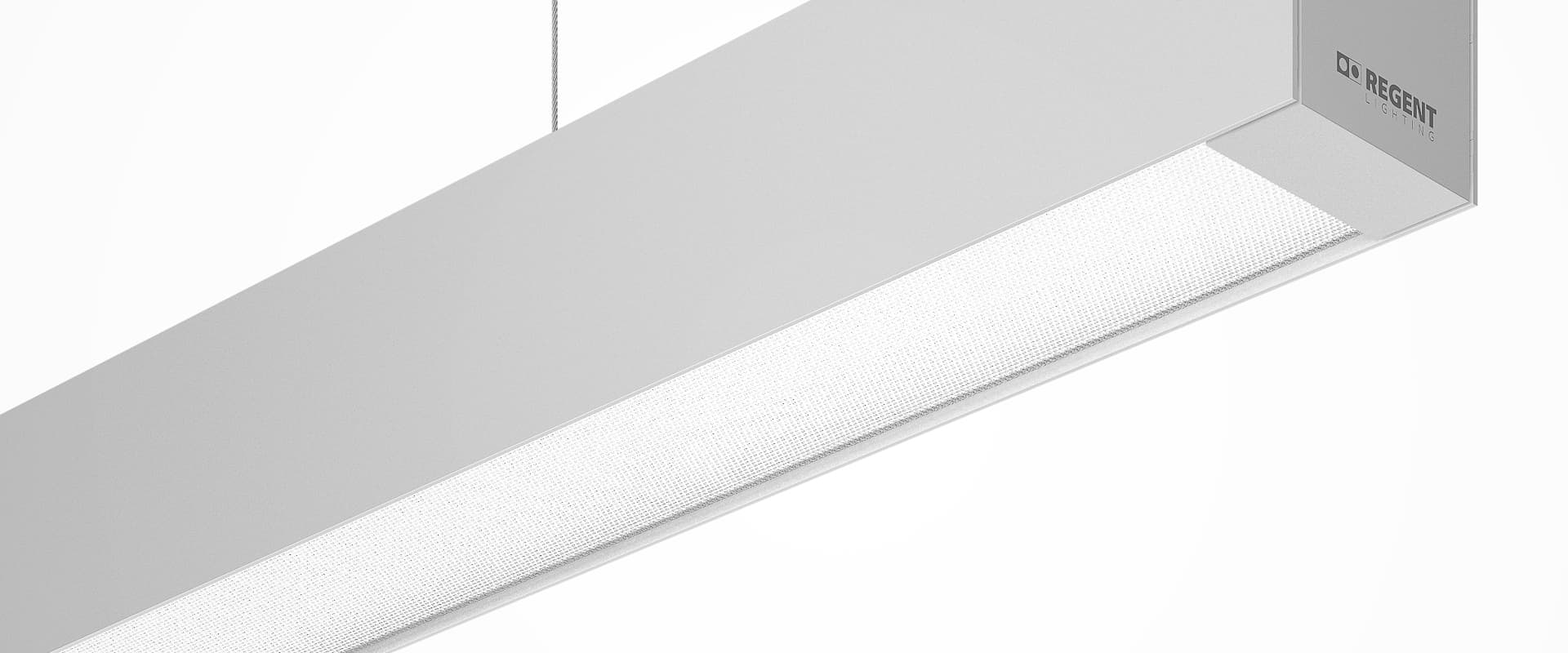

• Channel S Up Office: maximum visual comfort thanks to glare control with the office-compatible diffuser RUN+ and a high indirect light component

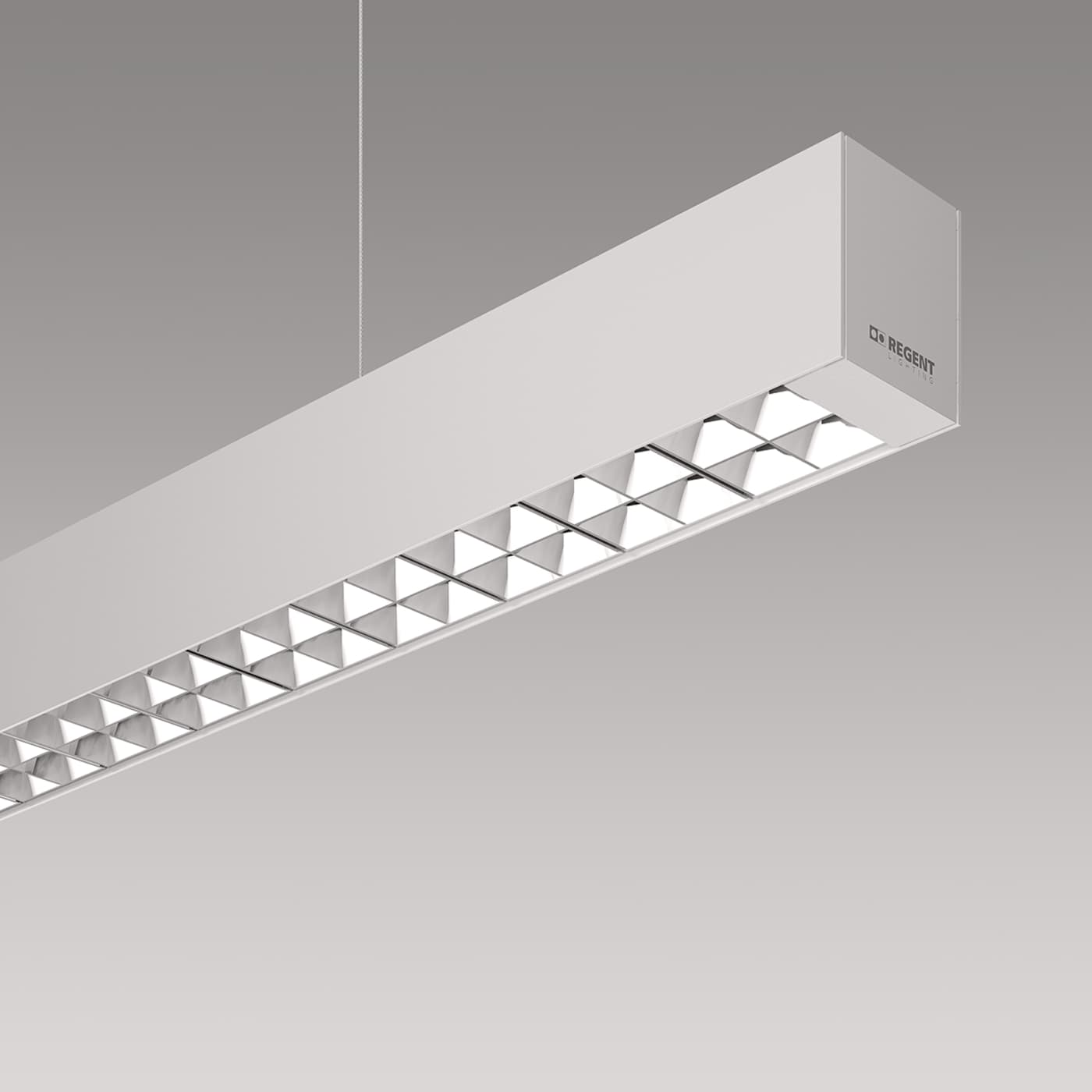

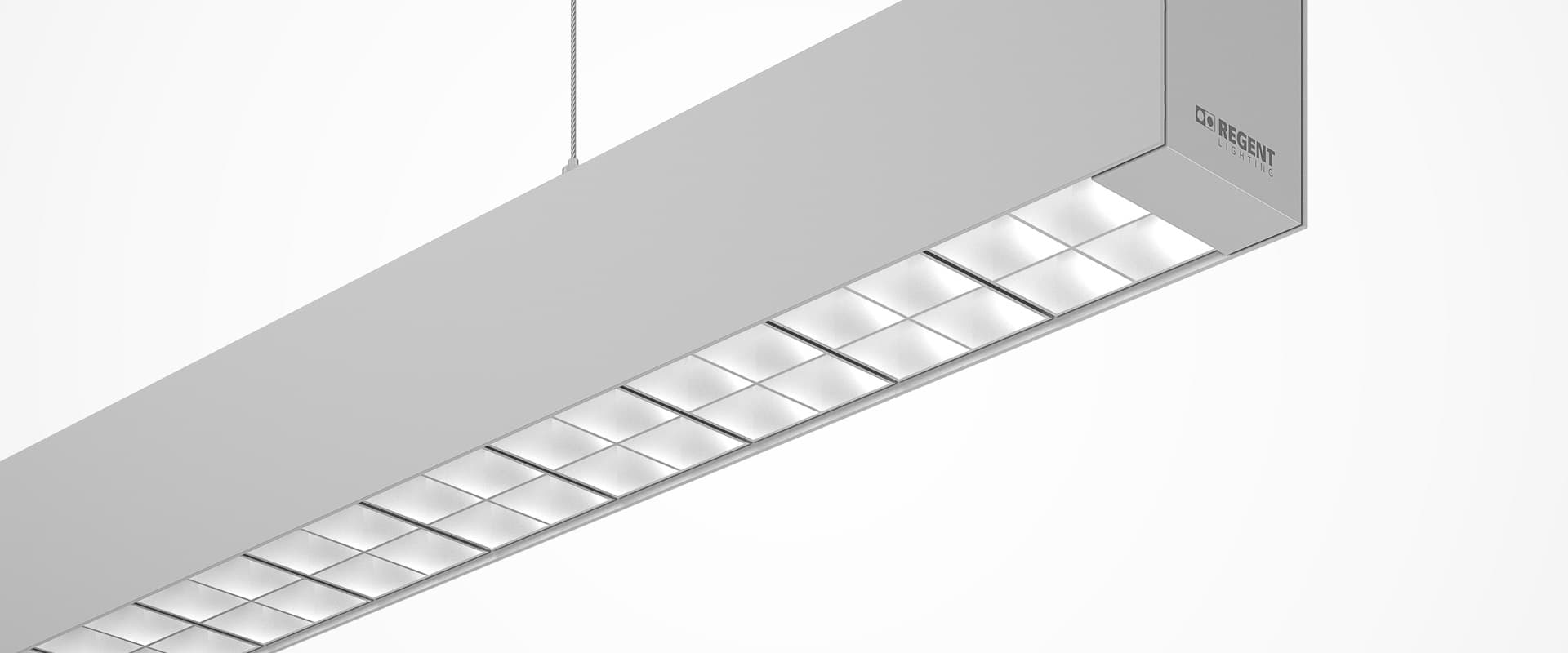

• Channel S Up Boost Office: glare control with office-compatible louvre optics, particularly efficient thanks to high direct light component
• RUN+ and louvre optics Boost guarantee standard-compliant planning according to EN 12464-1
• High luminous flux from 1500 lm to 3300 lm direct light component per metre, depending on product line
• Shadow-free line of light and timeless design
• Asymmetrical light distribution for standard-compliant blackboard lighting and wall illumination

Specifications

• Lengths: 1250 mm, 1550 mm, 2450 mm, (3650 mm using system components)
• End faces feature expansion compensation, generating a visually seamless, flush-mounted diffuser effect
• Lateral surfaces are perceived as seamless thanks to embedded end faces
• Support profile and end faces made of aluminium, natural anodised
• No visible screws
• Colour temperatures: 3000 K, 4000 K, 2700–6500 K (except Channel S Up Boost)
• Indirect light component from 20 % (Boost Office) to 65 % (Office)
• Operating unit integrated
• Dimmable digital DALI
• Also available as a system

Fields of application

• Office & Education: open-plan offices, staff training facilities, conference rooms, libraries, classrooms, circulation zones
• Retail & Hospitality: Checkout areas, shopping malls
• Industry: working areas
