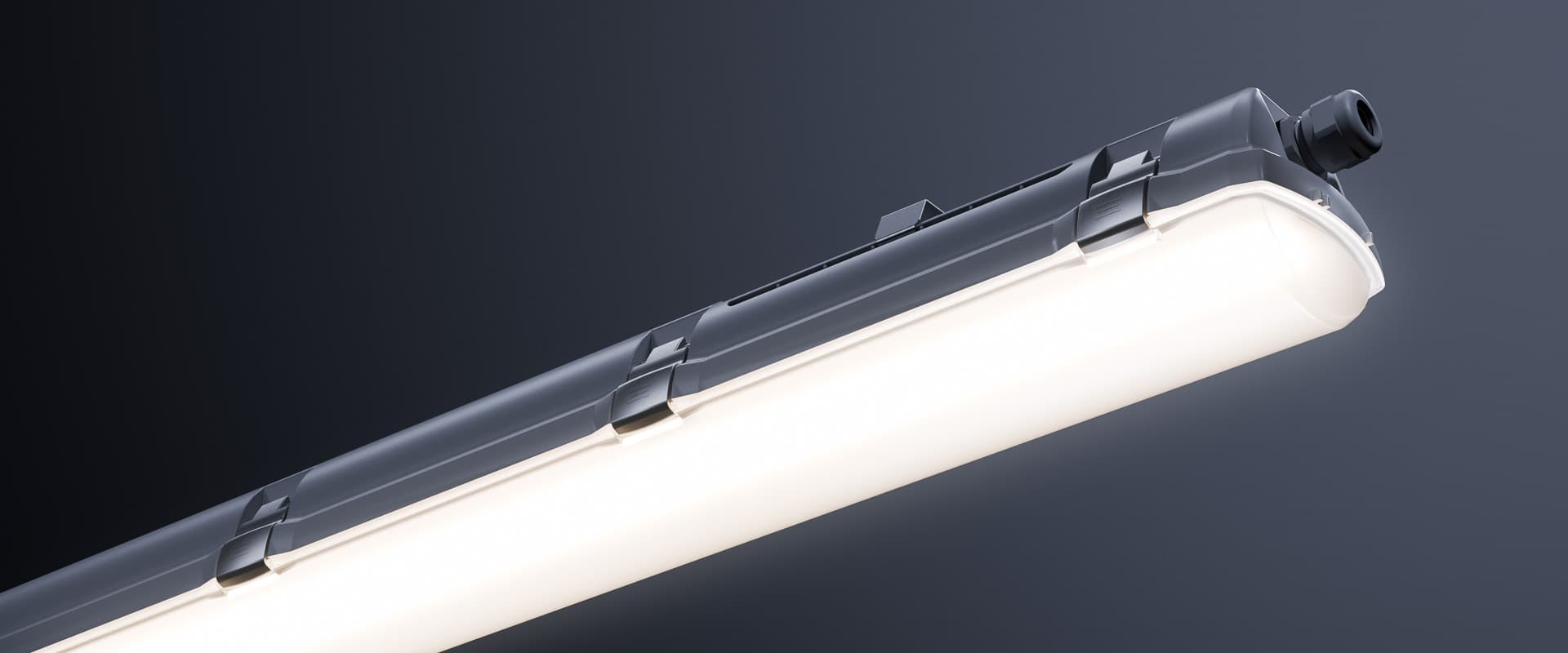

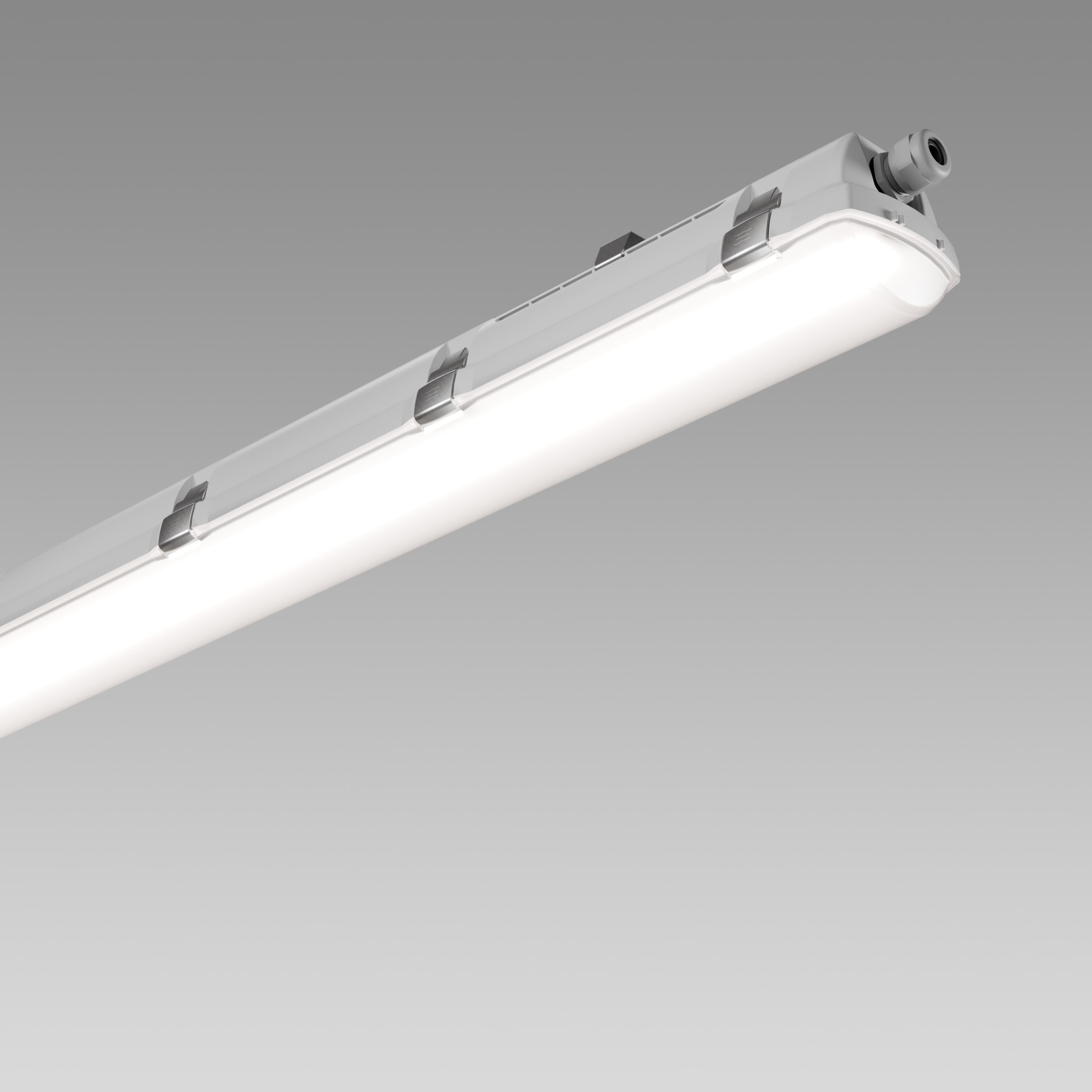

Splash 2
With the SPLASH 2, we are presenting the next generation of our tried-and-tested moisture-proof diffuser light. Thanks to state-of-the-art technology and innovative design, the SPLASH 2 sets new standards in terms of light quality, energy efficiency and robustness. Whether in workshops, warehouses or damp environments - the SPLASH 2 impresses with its durable construction, high protection rating and even more efficient light management. Improved materials and optimised mounting not only make installation easier, but also guarantee sustainable and reliable use. Experience the further development of a classic luminaire - efficient, contemporary and powerful: the SPLASH 2.
Features
Specifications
Fields of application
Downloads
| Article number | Luminous flux of luminaire | Colour temperature | Light control | Beam spread characteristics | emergency unit | Length | Through-wiring | |
|---|---|---|---|---|---|---|---|---|
SPLA2 1170 LED4000-840 WB SAN DALI2011.9489 | 4000 lm | 4000 K | DALI2 | wide beam | - | 1170 mm | - | |
SPLA2 1170 LED4200-840 WB PC DALI2011.9466 | 4200 lm | 4000 K | DALI2 | wide beam | - | 1170 mm | - | |
SPLA2 1170 LED5800-840-ML WB SAN ONF2011.9487 | 5800 lm | 4000 K | ON/OFF | wide beam | - | 1170 mm | - | |
SPLA2 1170 LED5800-840-ML WB SAN ONF E3h2011.9488 | 5800 lm | 4000 K | ON/OFF | wide beam | with emergency unit | 1170 mm | - | |
SPLA2 1170 LED6100-840-ML WB PC ONF2011.9498 | 6100 lm | 4000 K | ON/OFF | wide beam | - | 1170 mm | - | |
SPLA2 1170 LED6100-840-ML WB PC ONF E3h2011.9499 | 6100 lm | 4000 K | ON/OFF | wide beam | with emergency unit | 1170 mm | - | |
SPLA2 1170 LED6100-865-ML WB PC ONF2011.9463 | 6100 lm | 6500 K | ON/OFF | wide beam | - | 1170 mm | - | |
SPLA2 1170 LED6100-865-ML WB PC ONF E3h2011.9464 | 6100 lm | 6500 K | ON/OFF | wide beam | with emergency unit | 1170 mm | - | |
SPLA2 1170 LED6110-865 WB PC DALI2011.9465 | 6110 lm | 6500 K | DALI2 | wide beam | - | 1170 mm | - | |
SPLA2 1450 LED4900-840 NB SAN DALI2011.9494 | 4900 lm | 4000 K | DALI2 | concentrated beam | - | 1450 mm | - | |
SPLA2 1450 LED4900-840 WB SAN DALI2011.9495 | 4900 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED4900-840 WB SAN DALI E3h2011.9496 | 4900 lm | 4000 K | DALI2 | wide beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED5100-840 NB PC DALI2011.9475 | 5100 lm | 4000 K | DALI2 | concentrated beam | - | 1450 mm | - | |
SPLA2 1450 LED5200-840 WB PC CO THW MAS2011.9481 | 5200 lm | 4000 K | DALI corridorFUNCTION | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED5200-840 WB PC CO THW SLV2011.9482 | 5200 lm | 4000 K | DALI corridorFUNCTION | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED5200-840 WB PC DALI2011.9477 | 5200 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED5200-840 WB PC DALI E3h2011.9479 | 5200 lm | 4000 K | DALI2 | wide beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED5200-840 WB PC DALI THW2011.9478 | 5200 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED5200-840 WB PC DALI THW E3h2011.9480 | 5200 lm | 4000 K | DALI2 | wide beam | with emergency unit | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED5200-865 WB PC DALI2011.9476 | 5200 lm | 6500 K | DALI2 | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7000-840-ML NB SAN ONF2011.9492 | 7000 lm | 4000 K | ON/OFF | concentrated beam | - | 1450 mm | - | |
SPLA2 1450 LED7000-840-ML NB SAN ONF E3h2011.9493 | 7000 lm | 4000 K | ON/OFF | concentrated beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED7000-840-ML WB SAN ONF2011.9490 | 7000 lm | 4000 K | ON/OFF | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7000-840-ML WB SAN ONF E3h2011.9491 | 7000 lm | 4000 K | ON/OFF | wide beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED7000-840 WB SAN DALI2011.9497 | 7000 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7300-840-ML NB PC ONF2011.9473 | 7300 lm | 4000 K | ON/OFF | concentrated beam | - | 1450 mm | - | |
SPLA2 1450 LED7300-840-ML NB PC ONF E3h2011.9474 | 7300 lm | 4000 K | ON/OFF | concentrated beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED7500-840-ML WB PC ONF2011.9467 | 7500 lm | 4000 K | ON/OFF | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7500-840-ML WB PC ONF E3h2011.9469 | 7500 lm | 4000 K | ON/OFF | wide beam | with emergency unit | 1450 mm | - | |
SPLA2 1450 LED7500-840-ML WB PC ONF THW2011.9468 | 7500 lm | 4000 K | ON/OFF | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED7500-840-ML WB PC ONF THW E3h2011.9470 | 7500 lm | 4000 K | ON/OFF | wide beam | with emergency unit | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED7500-840 WB PC CO THW MAS2011.9485 | 7500 lm | 4000 K | DALI corridorFUNCTION | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED7500-840 WB PC CO THW SLV2011.9486 | 7500 lm | 4000 K | DALI corridorFUNCTION | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED7500-840 WB PC DALI2011.9483 | 7500 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7500-840 WB PC DALI THW2011.9484 | 7500 lm | 4000 K | DALI2 | wide beam | - | 1450 mm | 5 x 2.5 | |
SPLA2 1450 LED7500-865-ML WB PC ONF2011.9471 | 7500 lm | 6500 K | ON/OFF | wide beam | - | 1450 mm | - | |
SPLA2 1450 LED7500-865-ML WB PC ONF E3h2011.9472 | 7500 lm | 6500 K | ON/OFF | wide beam | with emergency unit | 1450 mm | - |
Damp-proof diffuser luminaire
Splash 2 Essential
Damp-proof diffuser luminaire
Splash 2 Clear

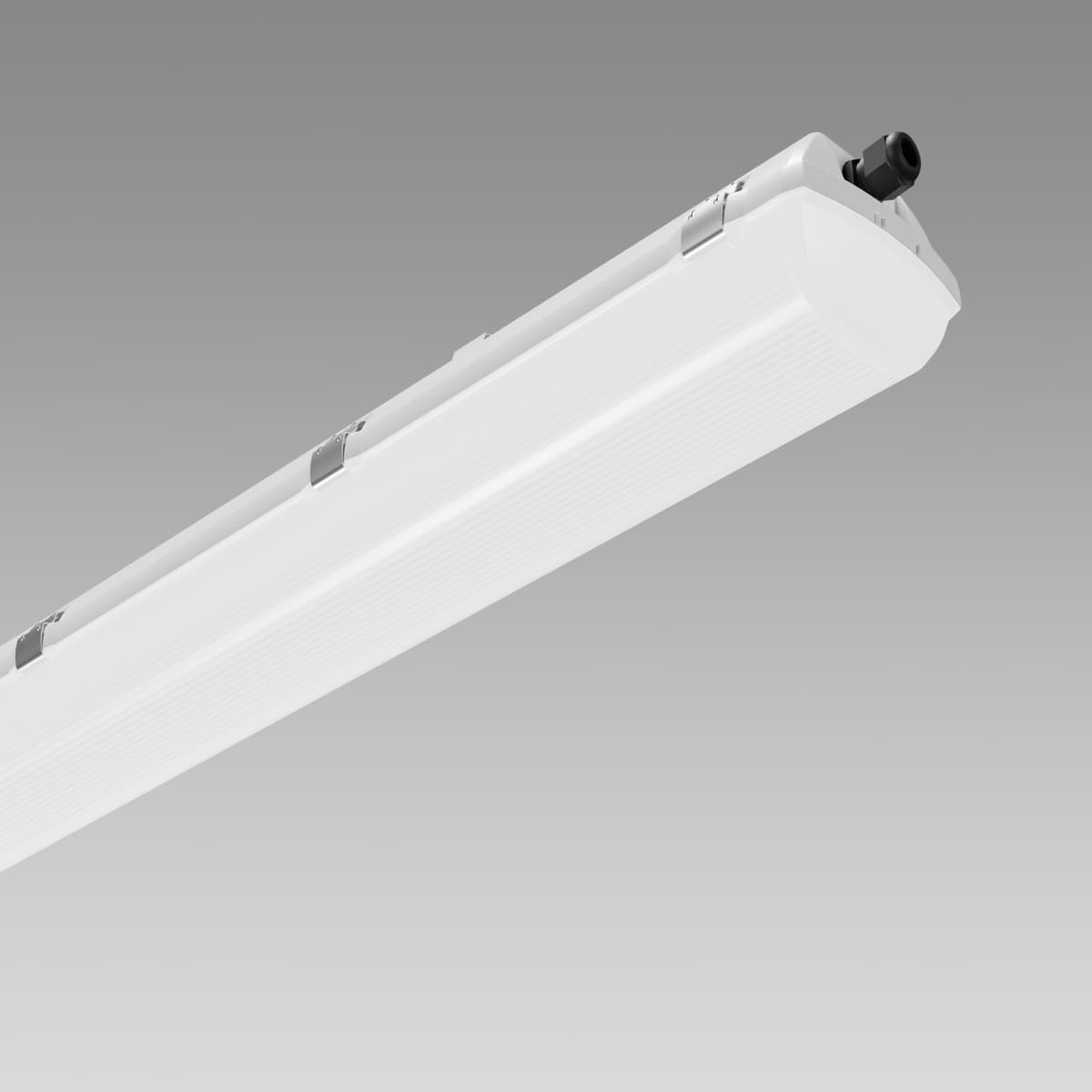

Explosion-proof damp-proof diffuser luminaire
